STS10P3LLH6

STS10P3LLH6 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 12.5 A continuous drain current Rds On value of 12 mOhms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.7 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 P-Channel Power MOSFET. STMicroelectronics is a trusted brand for quality electronics 45 ns fall time MOSFET product type Rise Time is 112 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 61 ns. The typical turn-on delay time is 12.8 ns. 1. 0.017870 oz of Unit Weight

STS10P3LLH6 Image

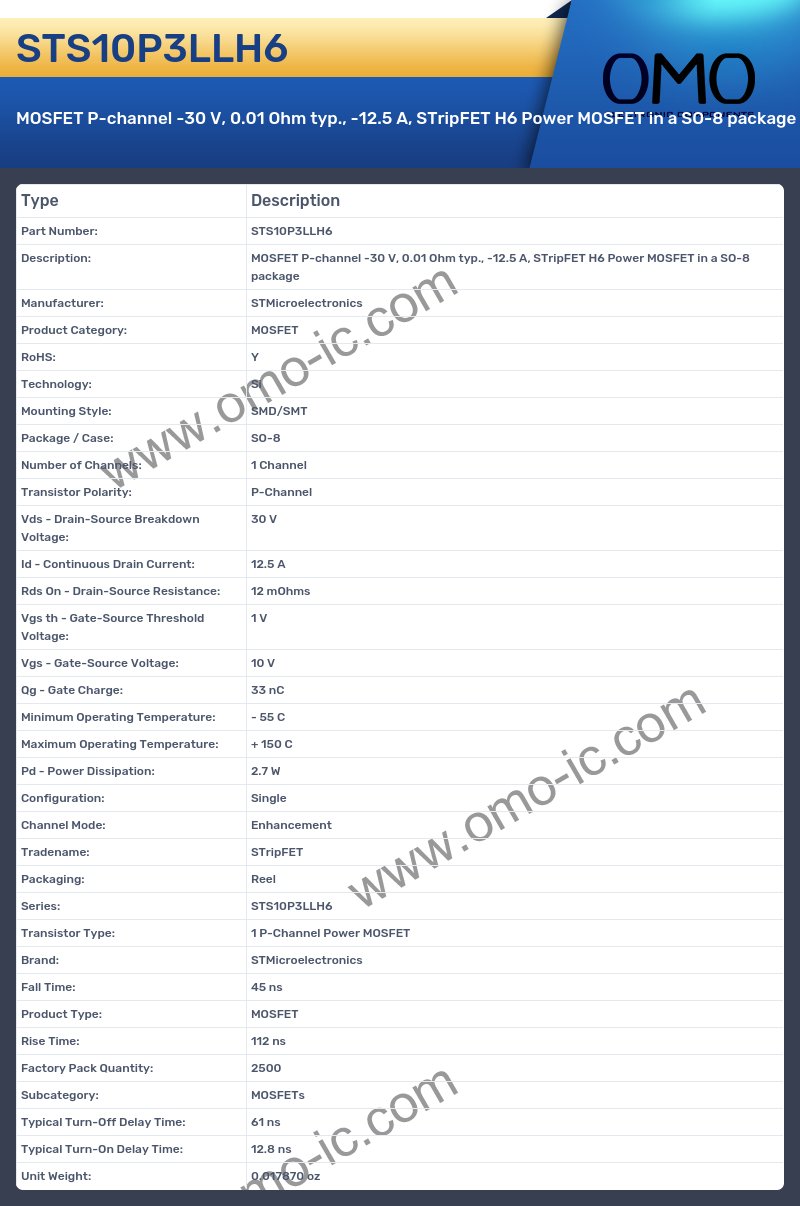

STS10P3LLH6 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 12.5 A
• Rds On - Drain-Source Resistance: 12 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 33 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.7 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Series: STS10P3LLH6
• Transistor Type: 1 P-Channel Power MOSFET
• Brand: STMicroelectronics
• Fall Time: 45 ns
• Product Type: MOSFET
• Rise Time: 112 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 61 ns
• Typical Turn-On Delay Time: 12.8 ns
• Unit Weight: 0.017870 oz
