STP7N52DK3

STP7N52DK3 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 620 V 6.2 A continuous drain current Rds On value of 1.15 Ohms Gate-Source Threshold Voltage Range: 4.5 V Gate-Source Voltage: 30 V The product can operate at a maximum temperature of + 150 C. 90 W This product has a Single configuration. Tube packaging for easy dispensing The Transistor Type is 1 N-Channel. This device belongs to the N-Channel SuperFREDmesh3 Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 1.5 S 4.2 ns fall time MOSFET product type Rise Time is 33 ns. 50 of 100 MOSFETs as subcategory Turn-off delay time is 19 ns. The typical turn-on delay time is 6 ns. 1. 0.011640 oz of Unit Weight

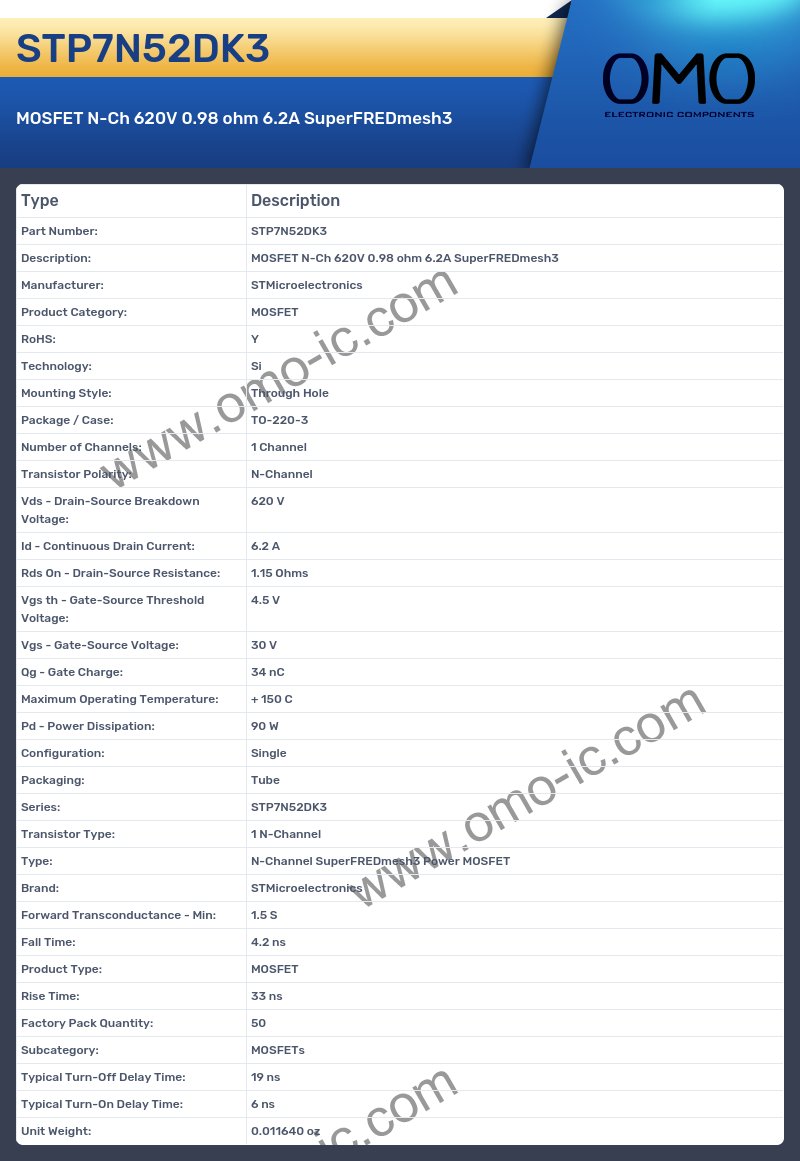

STP7N52DK3 Image

STP7N52DK3 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 620 V
• Id - Continuous Drain Current: 6.2 A
• Rds On - Drain-Source Resistance: 1.15 Ohms
• Vgs th - Gate-Source Threshold Voltage: 4.5 V
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 34 nC
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 90 W
• Configuration: Single
• Packaging: Tube
• Series: STP7N52DK3
• Transistor Type: 1 N-Channel
• Type: N-Channel SuperFREDmesh3 Power MOSFET
• Brand: STMicroelectronics
• Forward Transconductance - Min: 1.5 S
• Fall Time: 4.2 ns
• Product Type: MOSFET
• Rise Time: 33 ns
• Factory Pack Quantity: 50
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 19 ns
• Typical Turn-On Delay Time: 6 ns
• Unit Weight: 0.011640 oz
