STM1001SWX6F Overview

This product is manufactured by STMicroelectronics. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOT-23-3 package/case type is utilized by this product. 3 V, 3.3 V, 5 V threshold voltage range The output type is Open Collector / Drain. 280 ms. Supply Voltage - Max: 7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.02 mm. 3.04 mm long STMicroelectronics is a trusted brand for quality electronics 2.96 V is specified as a product attribute. The 2.93 V is a critical parameter in this product. No Chip Enable signal is supported. 320 mW Supervisory Circuits product type 3000 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: - 0.3 V 1. 0.000282 oz of Unit Weight

STM1001SWX6F Image

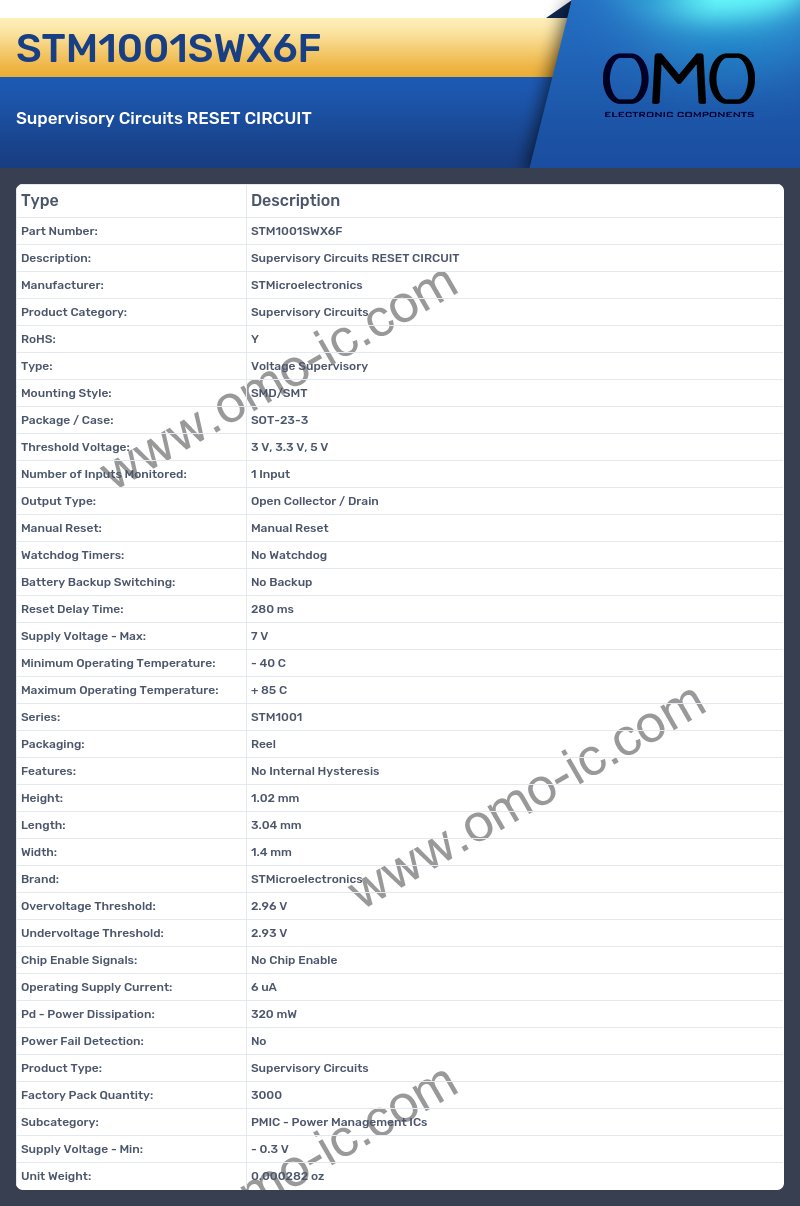

STM1001SWX6F Specifications

• Manufacturer: STMicroelectronics
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-3
• Threshold Voltage: 3 V, 3.3 V, 5 V
• Number of Inputs Monitored: 1 Input
• Output Type: Open Collector / Drain
• Manual Reset: Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: 280 ms
• Supply Voltage - Max: 7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: STM1001
• Packaging: Reel
• Features: No Internal Hysteresis
• Height: 1.02 mm
• Length: 3.04 mm
• Width: 1.4 mm
• Brand: STMicroelectronics
• Overvoltage Threshold: 2.96 V
• Undervoltage Threshold: 2.93 V
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 6 uA
• Pd - Power Dissipation: 320 mW
• Power Fail Detection: No
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 3000
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: - 0.3 V
• Unit Weight: 0.000282 oz
