STL20N6F7

STL20N6F7 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-3.3x3.3-HV-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 20 A continuous drain current Rds On value of 5.4 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 78 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.8 mm. 3.3 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 7.8 ns fall time MOSFET product type Rise Time is 17.6 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 24.4 ns. The typical turn-on delay time is 15 ns. 1. 0.000988 oz of Unit Weight

STL20N6F7 Image

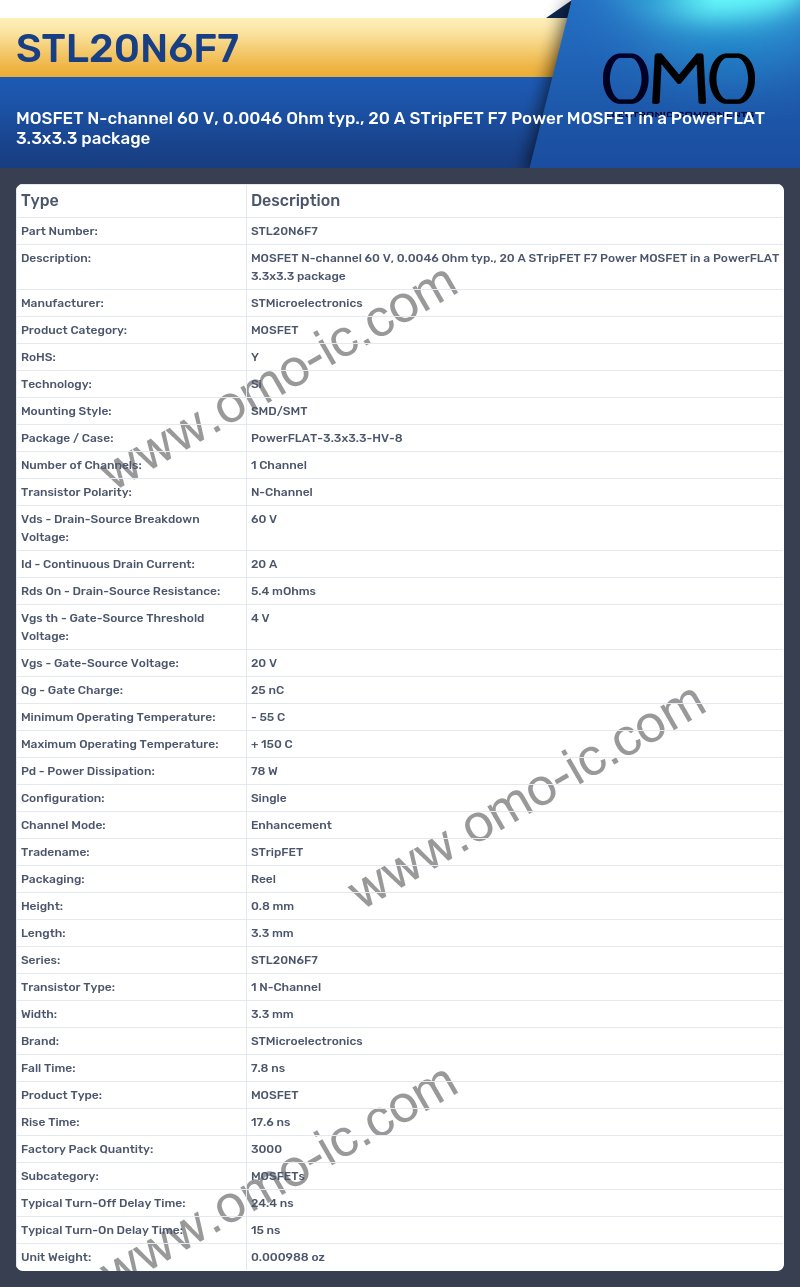

STL20N6F7 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-3.3x3.3-HV-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 20 A
• Rds On - Drain-Source Resistance: 5.4 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 25 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 78 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Height: 0.8 mm
• Length: 3.3 mm
• Series: STL20N6F7
• Transistor Type: 1 N-Channel
• Width: 3.3 mm
• Brand: STMicroelectronics
• Fall Time: 7.8 ns
• Product Type: MOSFET
• Rise Time: 17.6 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 24.4 ns
• Typical Turn-On Delay Time: 15 ns
• Unit Weight: 0.000988 oz
