STL20DNF06LAG

STL20DNF06LAG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 20 A continuous drain current Rds On value of 40 mOhms Gate-Source Threshold Voltage Range: 2.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 75 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Reel packaging for easy dispensing STMicroelectronics is a trusted brand for quality electronics 7.7 ns fall time MOSFET product type Rise Time is 15.4 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 36.8 ns. The typical turn-on delay time is 7 ns.

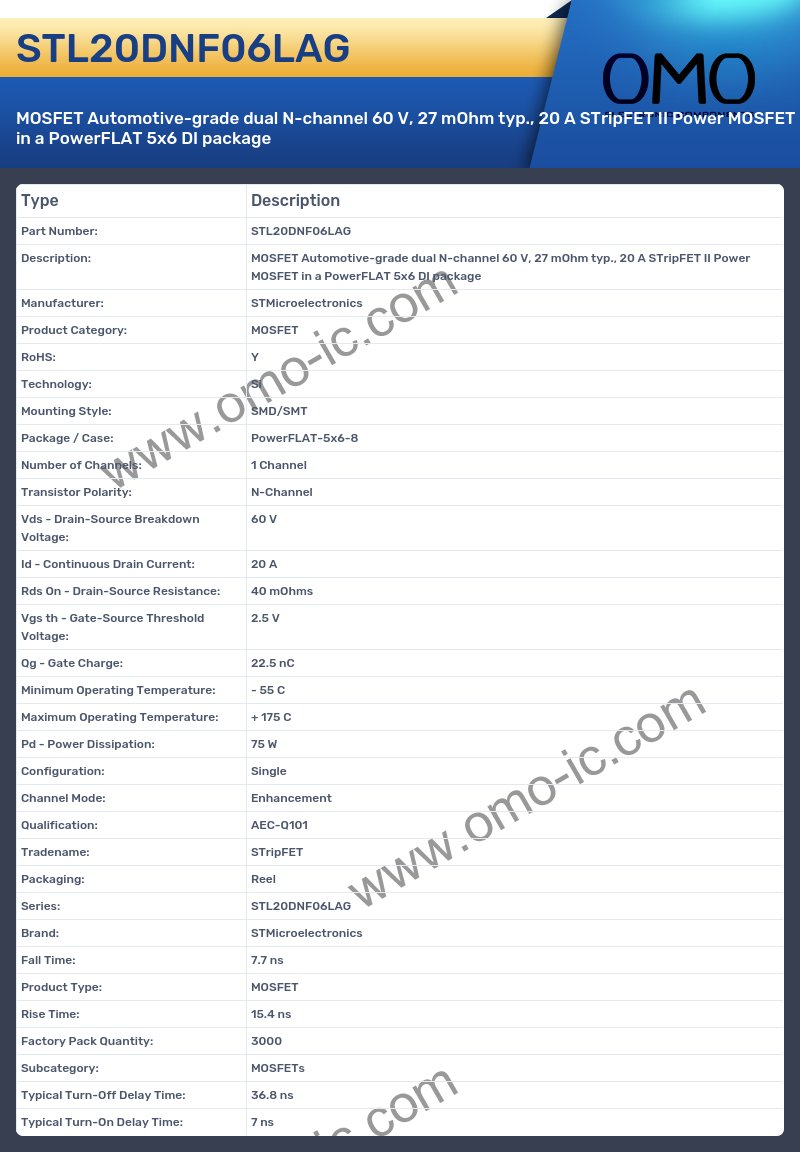

STL20DNF06LAG Image

STL20DNF06LAG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-5x6-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 20 A
• Rds On - Drain-Source Resistance: 40 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2.5 V
• Qg - Gate Charge: 22.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 75 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Reel
• Series: STL20DNF06LAG
• Brand: STMicroelectronics
• Fall Time: 7.7 ns
• Product Type: MOSFET
• Rise Time: 15.4 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 36.8 ns
• Typical Turn-On Delay Time: 7 ns
