STL100N1VH5

STL100N1VH5 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 12 V 100 A continuous drain current Rds On value of 2.2 mOhms Gate-Source Threshold Voltage Range: 500 mV Gate-Source Voltage: 8 V 60 W This product has a Single configuration. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 16 ns fall time MOSFET product type Rise Time is 31.6 ns. 3000 of 100 MOSFETs as subcategory 1. 1.058219 oz of Unit Weight

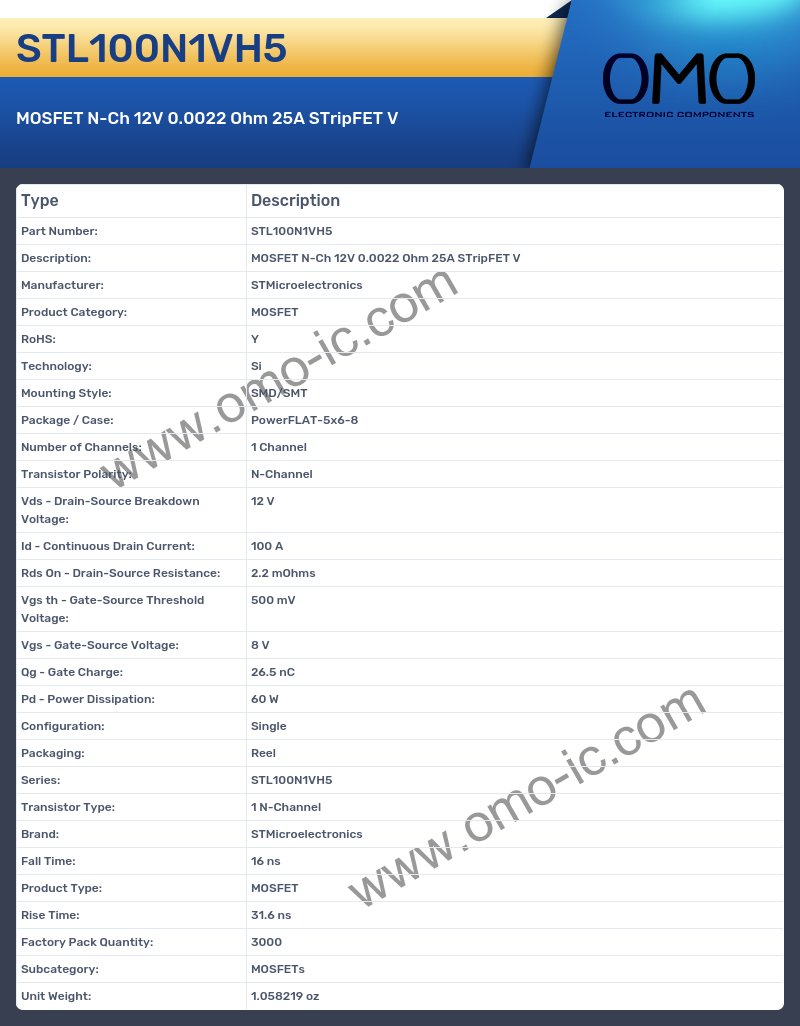

STL100N1VH5 Image

STL100N1VH5 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-5x6-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 12 V
• Id - Continuous Drain Current: 100 A
• Rds On - Drain-Source Resistance: 2.2 mOhms
• Vgs th - Gate-Source Threshold Voltage: 500 mV
• Vgs - Gate-Source Voltage: 8 V
• Qg - Gate Charge: 26.5 nC
• Pd - Power Dissipation: 60 W
• Configuration: Single
• Packaging: Reel
• Series: STL100N1VH5
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 16 ns
• Product Type: MOSFET
• Rise Time: 31.6 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Unit Weight: 1.058219 oz
