STH315N10F7-2

STH315N10F7-2 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. H2PAK-2 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 100 V 180 A continuous drain current Rds On value of 2.3 mOhms Gate-Source Threshold Voltage Range: 3.5 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 315 W This product has a Single configuration. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 40 ns fall time MOSFET product type Rise Time is 108 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 148 ns. The typical turn-on delay time is 62 ns. 1. 0.139332 oz of Unit Weight

STH315N10F7-2 Image

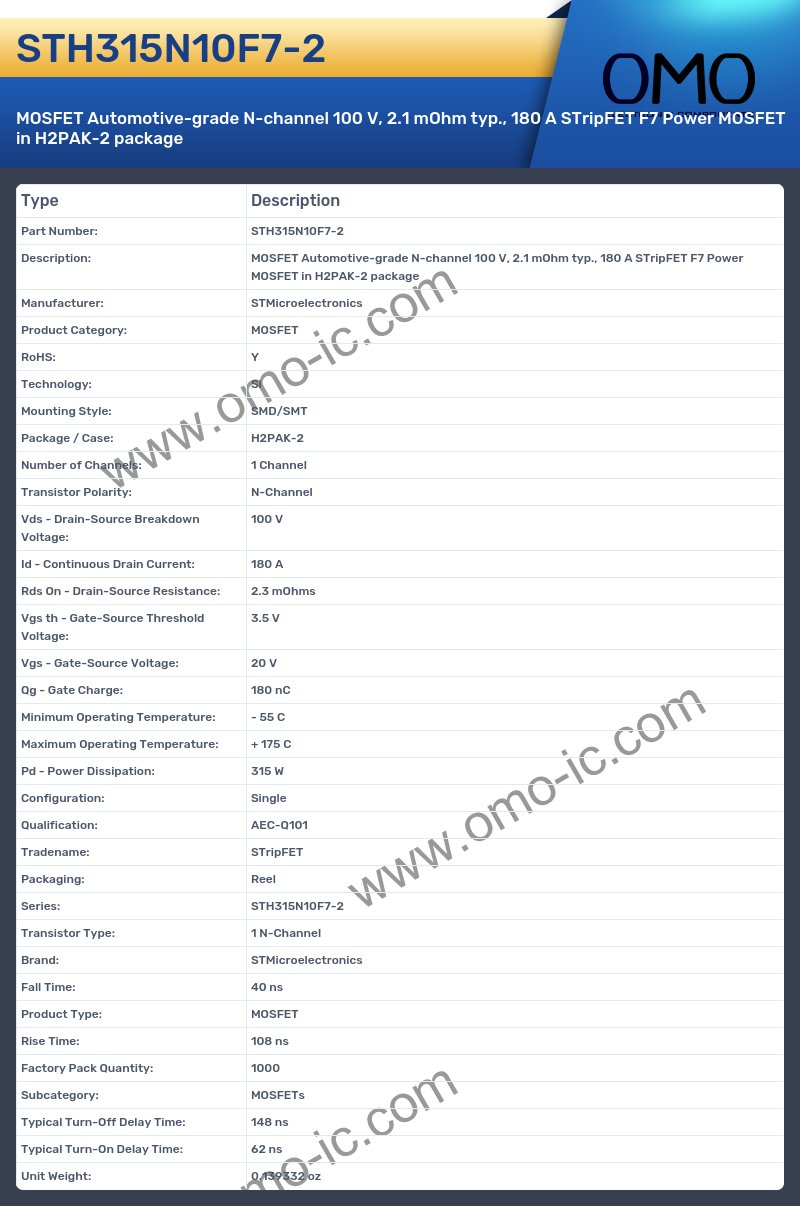

STH315N10F7-2 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: H2PAK-2
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 100 V
• Id - Continuous Drain Current: 180 A
• Rds On - Drain-Source Resistance: 2.3 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3.5 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 180 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 315 W
• Configuration: Single
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Reel
• Series: STH315N10F7-2
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 40 ns
• Product Type: MOSFET
• Rise Time: 108 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 148 ns
• Typical Turn-On Delay Time: 62 ns
• Unit Weight: 0.139332 oz
