STH290N4F6-6AG

STH290N4F6-6AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. H2PAK-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 180 A continuous drain current Rds On value of 1.7 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 300 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 48 ns fall time MOSFET product type Rise Time is 116 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 105 ns. The typical turn-on delay time is 20 ns.

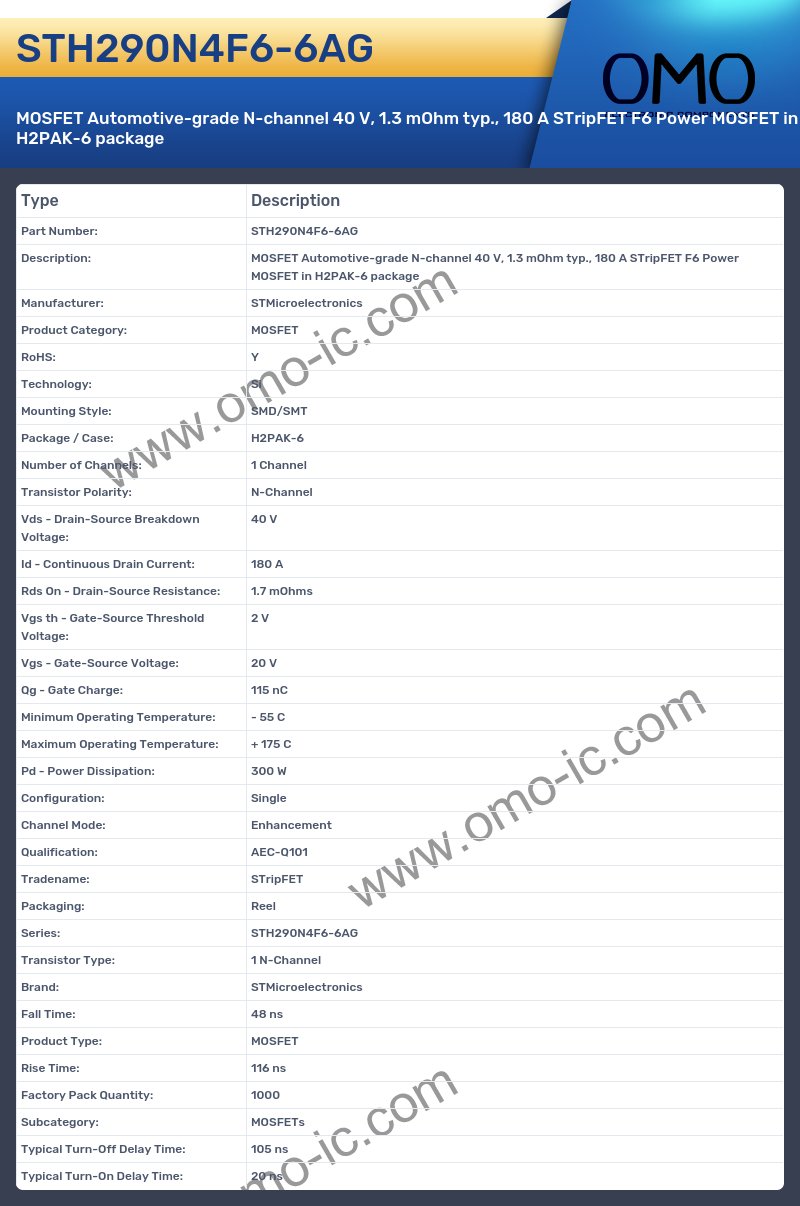

STH290N4F6-6AG Image

STH290N4F6-6AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: H2PAK-6
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 40 V
• Id - Continuous Drain Current: 180 A
• Rds On - Drain-Source Resistance: 1.7 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 115 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 300 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Reel
• Series: STH290N4F6-6AG
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 48 ns
• Product Type: MOSFET
• Rise Time: 116 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 105 ns
• Typical Turn-On Delay Time: 20 ns
