STD1NK80ZT4

STD1NK80ZT4 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 800 V 1 A continuous drain current Rds On value of 13 Ohms Gate-Source Voltage: 30 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 45 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 2.4 mm. 6.6 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 0.8 S 55 ns fall time MOSFET product type Rise Time is 30 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 22 ns. The typical turn-on delay time is 8 ns. 1. 0.139332 oz of Unit Weight

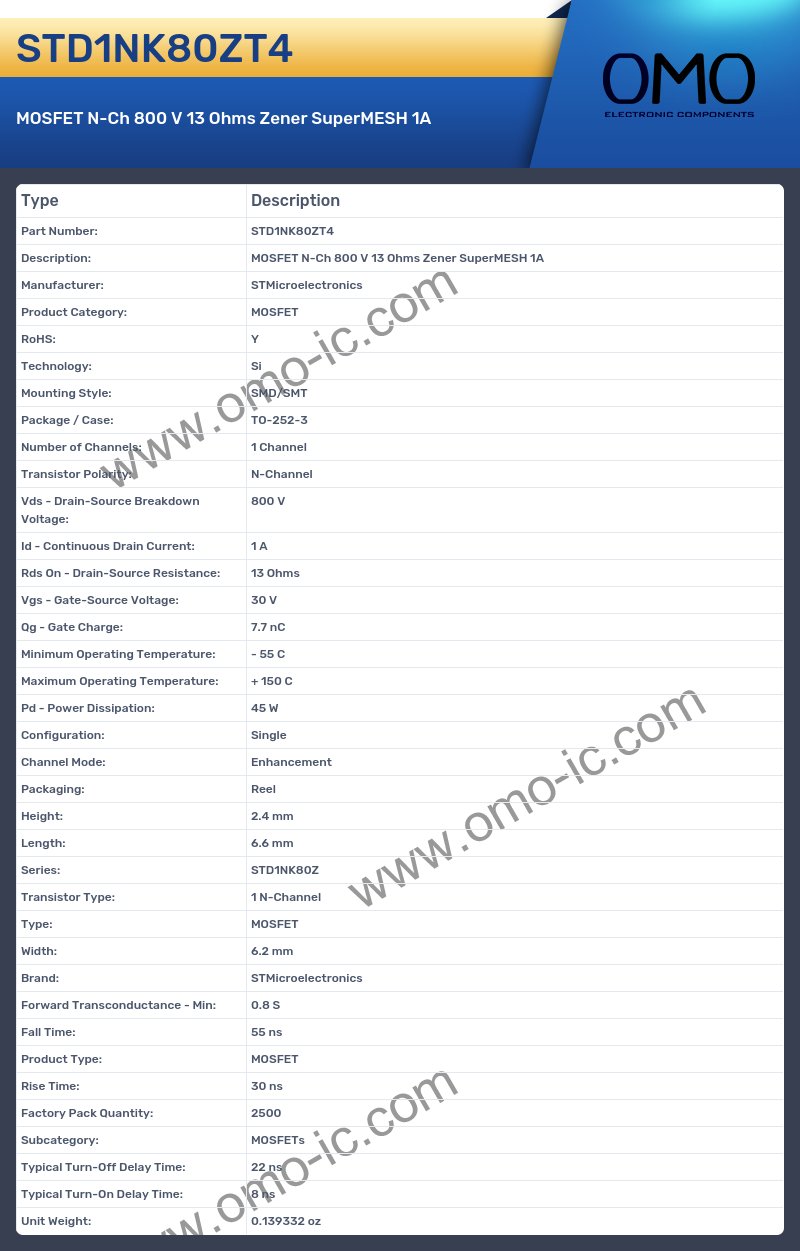

STD1NK80ZT4 Image

STD1NK80ZT4 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 800 V
• Id - Continuous Drain Current: 1 A
• Rds On - Drain-Source Resistance: 13 Ohms
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 7.7 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 45 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 2.4 mm
• Length: 6.6 mm
• Series: STD1NK80Z
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 6.2 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 0.8 S
• Fall Time: 55 ns
• Product Type: MOSFET
• Rise Time: 30 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 22 ns
• Typical Turn-On Delay Time: 8 ns
• Unit Weight: 0.139332 oz
