SN74S175NSR

SN74S175NSR Overview

This product is manufactured by Texas Instruments. This product has 4 circuit. The product uses the 74S logic family. D-Type Flip-Flop. Polarity type: Inverting/Non-Inverting Single-Ended input type The output type is Differential. The propagation delay time is 17 ns. This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA Supply Voltage - Min: 4.75 V Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SO-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 1.95 mm. 10.3 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 4 for efficient performance. 4.75 V to 5.25 V operating supply voltage range Flip Flops product type Master Reset Reset Type 1 of 100 Logic ICs as subcategory 1. 0.007079 oz of Unit Weight

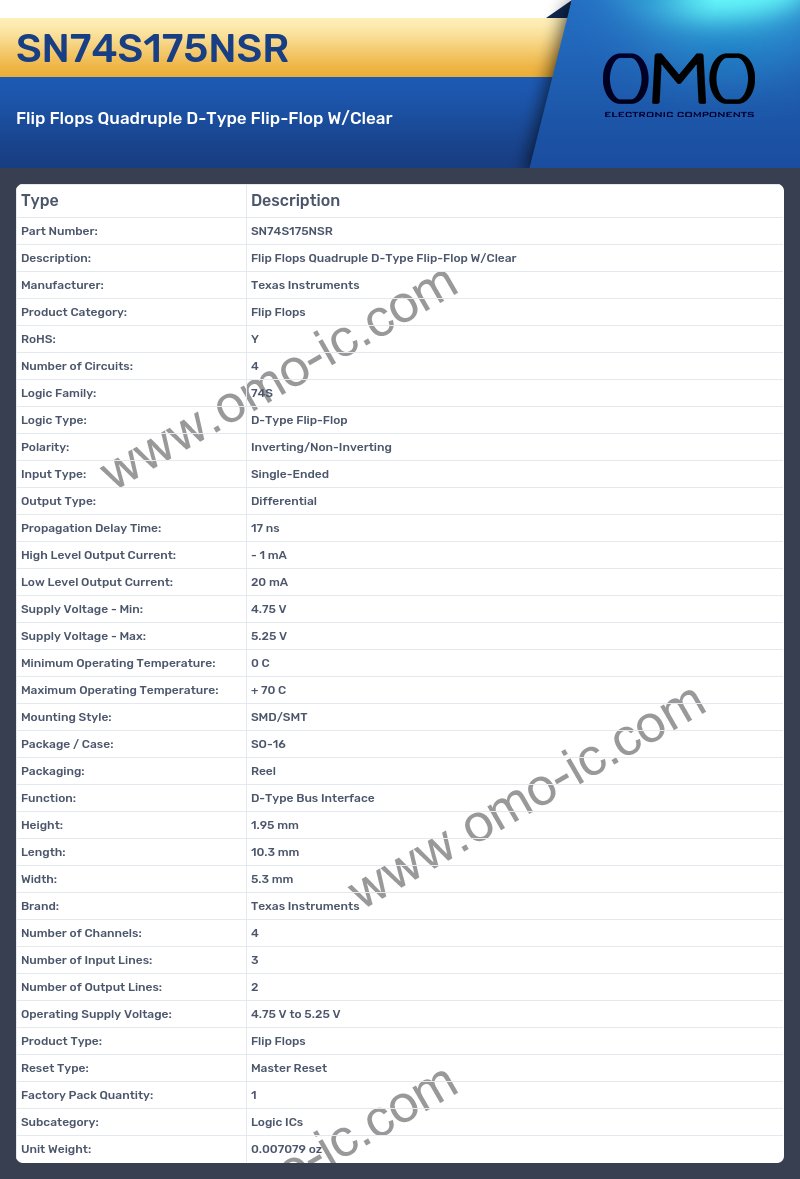

SN74S175NSR Image

SN74S175NSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 4
• Logic Family: 74S
• Logic Type: D-Type Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: Single-Ended
• Output Type: Differential
• Propagation Delay Time: 17 ns
• High Level Output Current: - 1 mA
• Low Level Output Current: 20 mA
• Supply Voltage - Min: 4.75 V
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SO-16
• Packaging: Reel
• Function: D-Type Bus Interface
• Height: 1.95 mm
• Length: 10.3 mm
• Width: 5.3 mm
• Brand: Texas Instruments
• Number of Channels: 4
• Number of Input Lines: 3
• Number of Output Lines: 2
• Operating Supply Voltage: 4.75 V to 5.25 V
• Product Type: Flip Flops
• Reset Type: Master Reset
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.007079 oz
