SN74LVTH16543DL

SN74LVTH16543DL Overview

This product is manufactured by Texas Instruments. The product uses the LVT logic family. The product's TTL/CMOS input level ensures compatibility with a wide range of devices. LVTTL Output Level for flexible output configuration The output type is 3-State. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 64 mA The propagation delay time is 3.7 ns at 2.7 V. Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SSOP-56 package/case type is utilized by this product. Tube packaging for easy dispensing t's a 16-Bit ABT Latched Transceiver The height of the product is 2.59 mm. 18.41 mm long This product has 2 circuit. Registered Transceiver Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 16 for efficient performance. 2.7 V to 3.6 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 20 of 100 Logic ICs as subcategory 1. 0.024508 oz of Unit Weight

SN74LVTH16543DL Image

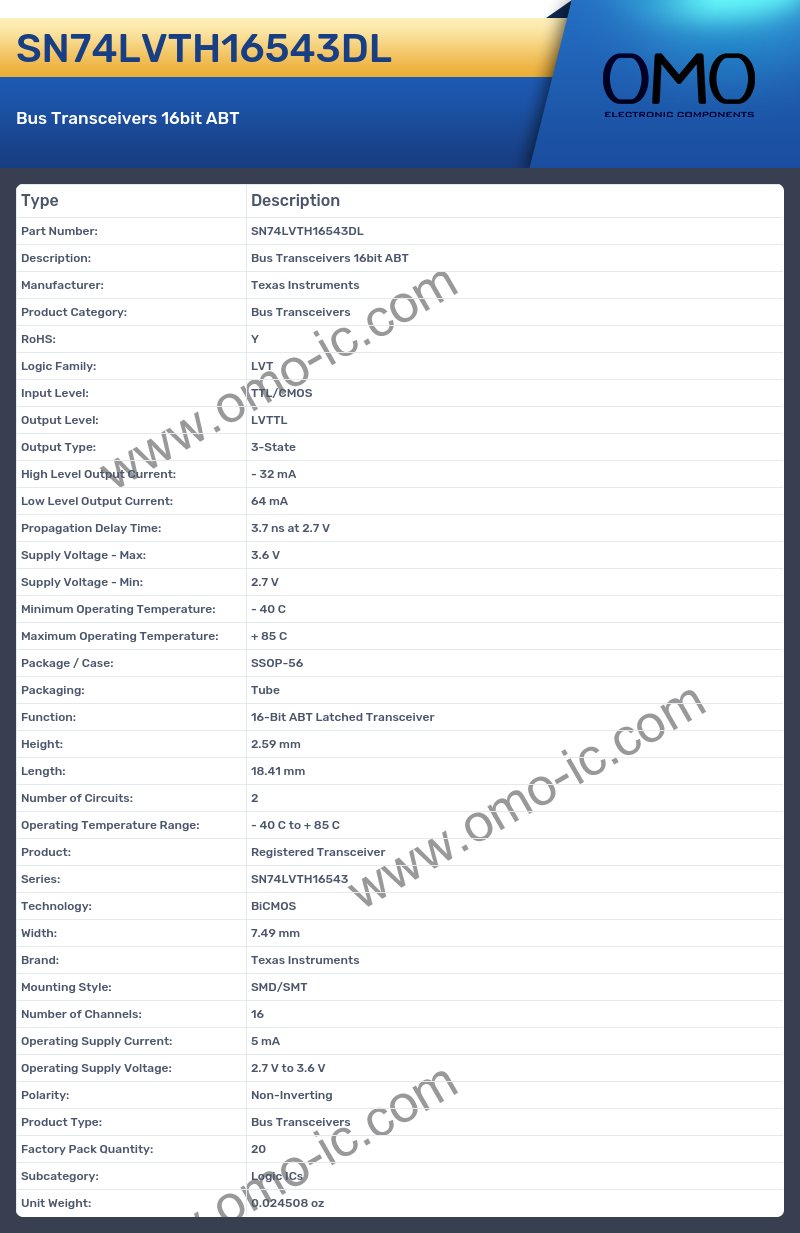

SN74LVTH16543DL Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: LVT
• Input Level: TTL/CMOS
• Output Level: LVTTL
• Output Type: 3-State
• High Level Output Current: - 32 mA
• Low Level Output Current: 64 mA
• Propagation Delay Time: 3.7 ns at 2.7 V
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SSOP-56
• Packaging: Tube
• Function: 16-Bit ABT Latched Transceiver
• Height: 2.59 mm
• Length: 18.41 mm
• Number of Circuits: 2
• Operating Temperature Range: - 40 C to + 85 C
• Product: Registered Transceiver
• Series: SN74LVTH16543
• Technology: BiCMOS
• Width: 7.49 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 16
• Operating Supply Current: 5 mA
• Operating Supply Voltage: 2.7 V to 3.6 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 20
• Subcategory: Logic ICs
• Unit Weight: 0.024508 oz
