SN74LVCZ244AN

SN74LVCZ244AN Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 4.57 mm. 24.33 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the LVC logic family. CMOS. This product is equipped with 8 for efficient performance. Maximum supply current: 100 uA This product has a - 24 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA 2.7 V to 3.6 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 6.9 ns at 2.7 V, 5.9 ns at 3.3 V. 1 of 100 Logic ICs as subcategory 1. 0.079719 oz of Unit Weight

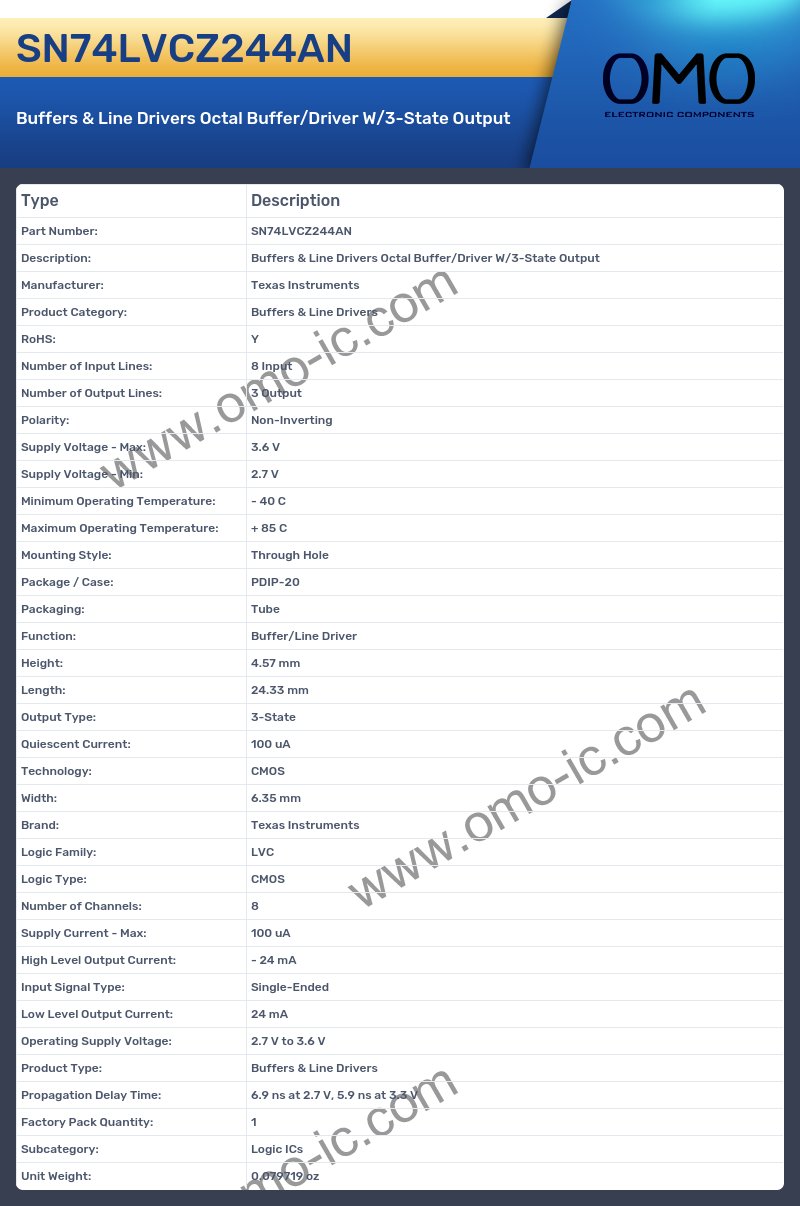

SN74LVCZ244AN Image

SN74LVCZ244AN Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 8 Input
• Number of Output Lines: 3 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 4.57 mm
• Length: 24.33 mm
• Output Type: 3-State
• Quiescent Current: 100 uA
• Technology: CMOS
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Family: LVC
• Logic Type: CMOS
• Number of Channels: 8
• Supply Current - Max: 100 uA
• High Level Output Current: - 24 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Operating Supply Voltage: 2.7 V to 3.6 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 6.9 ns at 2.7 V, 5.9 ns at 3.3 V
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.079719 oz
