SN74LS299DWRG4

SN74LS299DWRG4 Overview

This product is manufactured by Texas Instruments. Serial/Parallel to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit SOIC-20 package/case type is utilized by this product. The product uses the LS logic family. Bipolar. The output type is 3-State. The propagation delay time is 39 ns. Supply Voltage - Min: 4.75 V Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Reel packaging for easy dispensing t's a Shift Register The height of the product is 2.35 mm. 12.8 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 5 V operating supply voltage range Counter Shift Registers product type Asynchronous Reset Type 1 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.018953 oz of Unit Weight

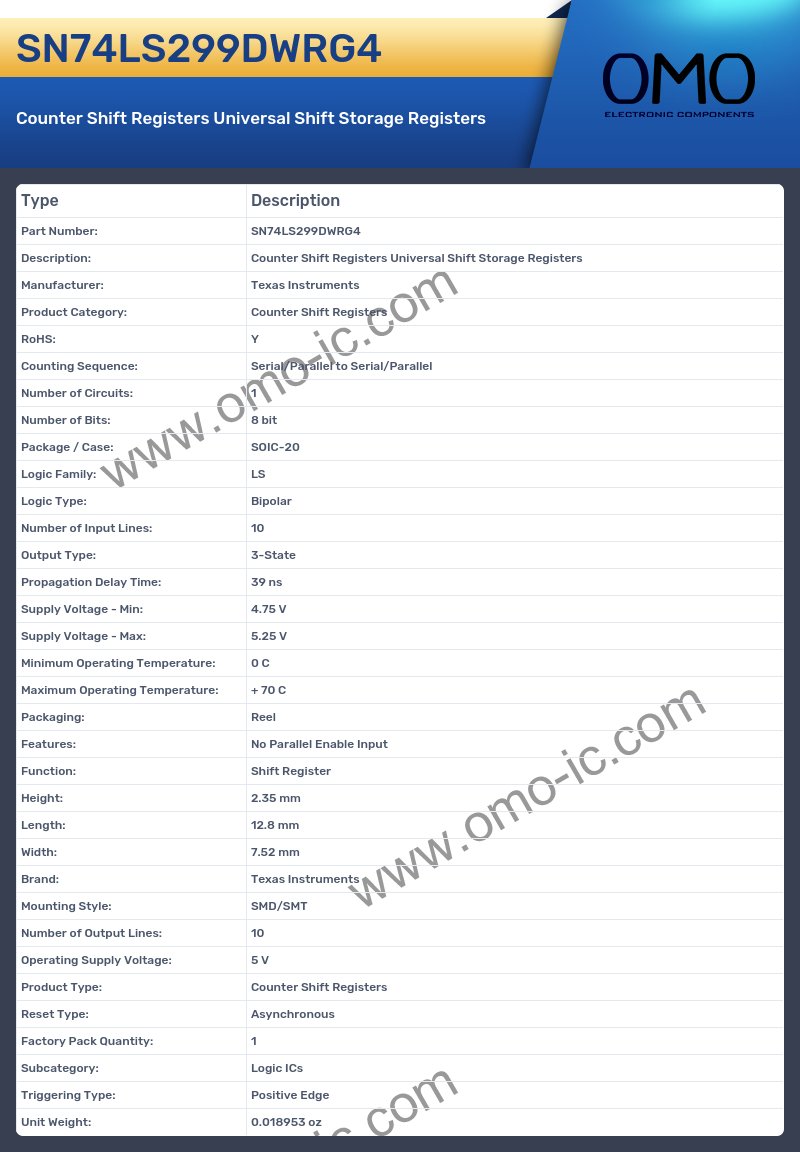

SN74LS299DWRG4 Image

SN74LS299DWRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial/Parallel to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: SOIC-20
• Logic Family: LS
• Logic Type: Bipolar
• Number of Input Lines: 10
• Output Type: 3-State
• Propagation Delay Time: 39 ns
• Supply Voltage - Min: 4.75 V
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Reel
• Features: No Parallel Enable Input
• Function: Shift Register
• Height: 2.35 mm
• Length: 12.8 mm
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 10
• Operating Supply Voltage: 5 V
• Product Type: Counter Shift Registers
• Reset Type: Asynchronous
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.018953 oz
