SN74AS153N

SN74AS153N Overview

This product is manufactured by Texas Instruments. Selectors / Multiplexers The product uses the AS logic family. The propagation delay time is 21 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Dual 1 to 4 The height of the product is 4.57 mm. 2.0 V to 0.8 V Input Voltage 19.3 mm long This product has Dual circuit. Output current: 26 mA Output Voltage is 4.5 V to 5.5 V Texas Instruments is a trusted brand for quality electronics Data Selectors/Multiplexers. This product has a - 15 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 48 mA The Maximum Clock Frequency of this product is 125 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

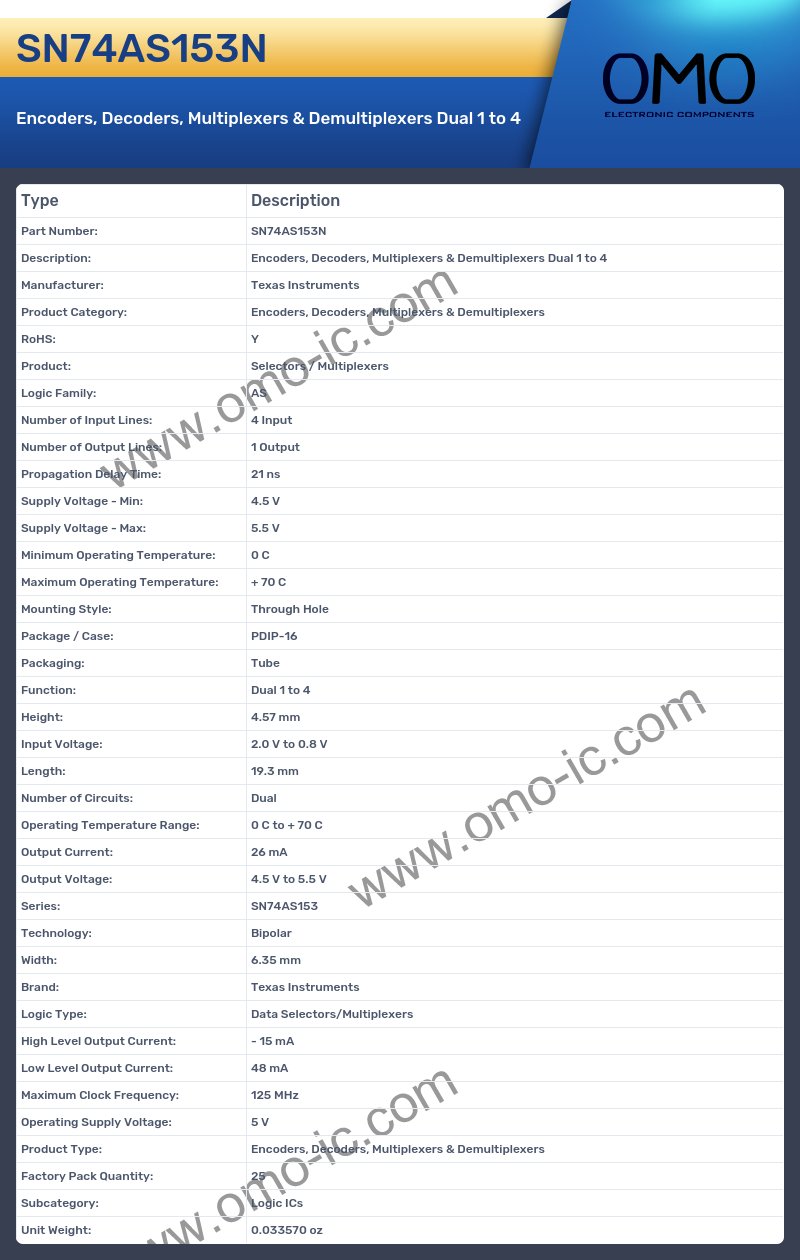

SN74AS153N Image

SN74AS153N Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Selectors / Multiplexers
• Logic Family: AS
• Number of Input Lines: 4 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 21 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Function: Dual 1 to 4
• Height: 4.57 mm
• Input Voltage: 2.0 V to 0.8 V
• Length: 19.3 mm
• Number of Circuits: Dual
• Operating Temperature Range: 0 C to + 70 C
• Output Current: 26 mA
• Output Voltage: 4.5 V to 5.5 V
• Series: SN74AS153
• Technology: Bipolar
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Type: Data Selectors/Multiplexers
• High Level Output Current: - 15 mA
• Low Level Output Current: 48 mA
• Maximum Clock Frequency: 125 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
