SN74AS138D

SN74AS138D Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the AS logic family. The propagation delay time is 22 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a 3 to 8 The height of the product is 1.58 mm. 2.0 V to 0.8 V Input Voltage 9.9 mm long This product has Single circuit. Output current: 8 mA Output Voltage is 4.5 V to 5.5 V Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. This product has a - 2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA The Maximum Clock Frequency of this product is 125 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

SN74AS138D Image

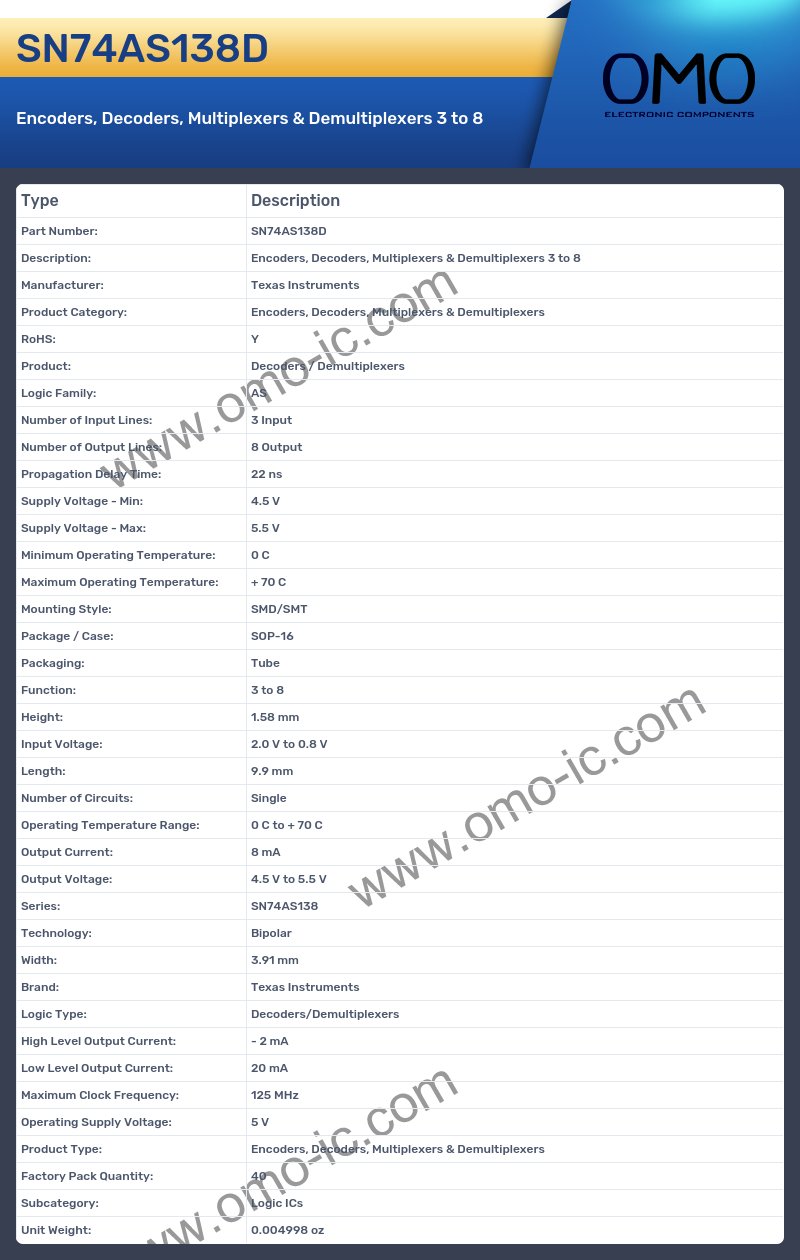

SN74AS138D Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: AS
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 22 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: 3 to 8
• Height: 1.58 mm
• Input Voltage: 2.0 V to 0.8 V
• Length: 9.9 mm
• Number of Circuits: Single
• Operating Temperature Range: 0 C to + 70 C
• Output Current: 8 mA
• Output Voltage: 4.5 V to 5.5 V
• Series: SN74AS138
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• High Level Output Current: - 2 mA
• Low Level Output Current: 20 mA
• Maximum Clock Frequency: 125 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
