SN74ALS564BDWR

SN74ALS564BDWR Overview

This product is manufactured by Texas Instruments. This product has 8 circuit. The product uses the 74AL logic family. D-Type Edge Triggered Flip-Flop. Polarity type: Inverting Single-Ended input type The output type is Single-Ended. The propagation delay time is 14 ns. This product has a - 2.6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. Reel packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 2.35 mm. 12.8 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 8 for efficient performance. 4.5 V to 5.5 V operating supply voltage range Flip Flops product type 1 of 100 Logic ICs as subcategory 1. 0.028254 oz of Unit Weight

SN74ALS564BDWR Image

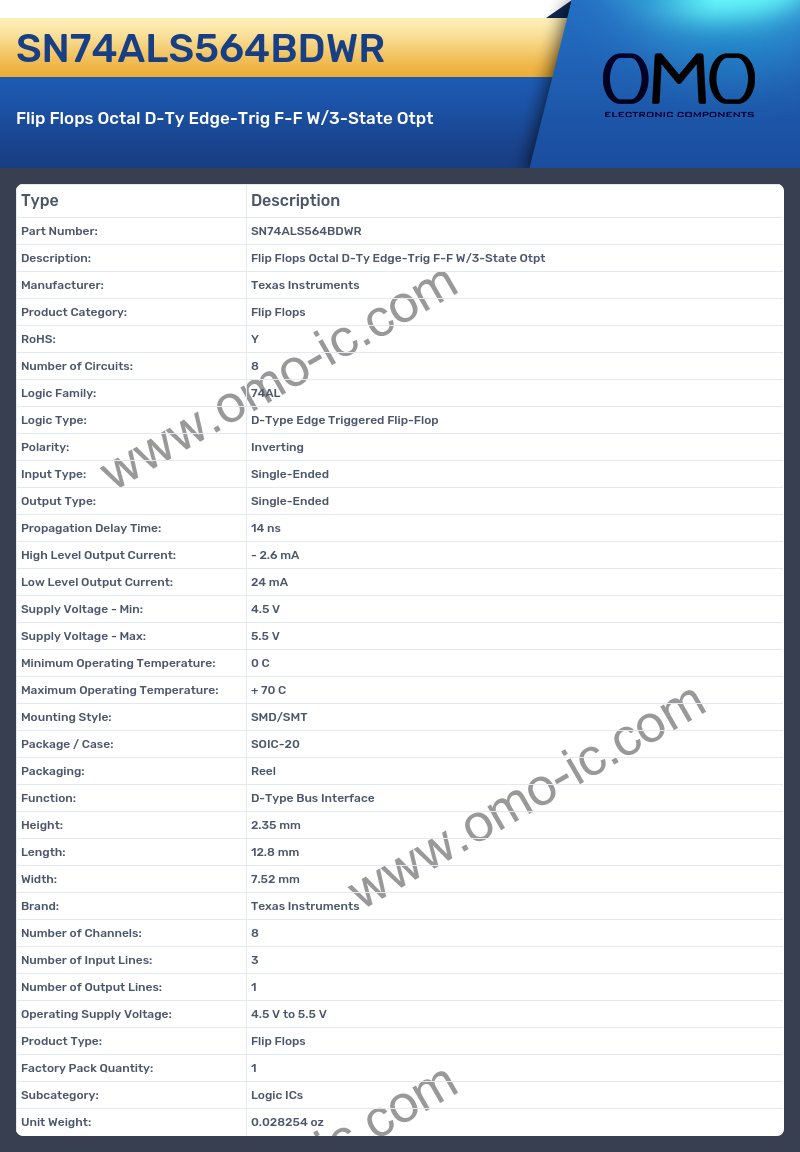

SN74ALS564BDWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 8
• Logic Family: 74AL
• Logic Type: D-Type Edge Triggered Flip-Flop
• Polarity: Inverting
• Input Type: Single-Ended
• Output Type: Single-Ended
• Propagation Delay Time: 14 ns
• High Level Output Current: - 2.6 mA
• Low Level Output Current: 24 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Packaging: Reel
• Function: D-Type Bus Interface
• Height: 2.35 mm
• Length: 12.8 mm
• Width: 7.52 mm
• Brand: Texas Instruments
• Number of Channels: 8
• Number of Input Lines: 3
• Number of Output Lines: 1
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Flip Flops
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.028254 oz
