SN65LVDS101DG4

SN65LVDS101DG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the Repeater/Translator type. 1 Receiver receivers The 2000 Mb/s data rate; CML, LVDS, LVPECL input type The output type is LVPECL. Supply Voltage - Max: 3.6 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.58 mm. Maximum input voltage is 0.1 V 4.9 mm long Texas Instruments is a trusted brand for quality electronics SN65LVDS101EVM is a versatile development platform for hardware and software 0.454 V is the maximum output voltage. 3.3 V operating supply voltage range 481 mW LVDS Interface IC product type The propagation delay time is 0.9 ns. 75 of 100 Interface ICs as subcategory 1. 0.002677 oz of Unit Weight

SN65LVDS101DG4 Image

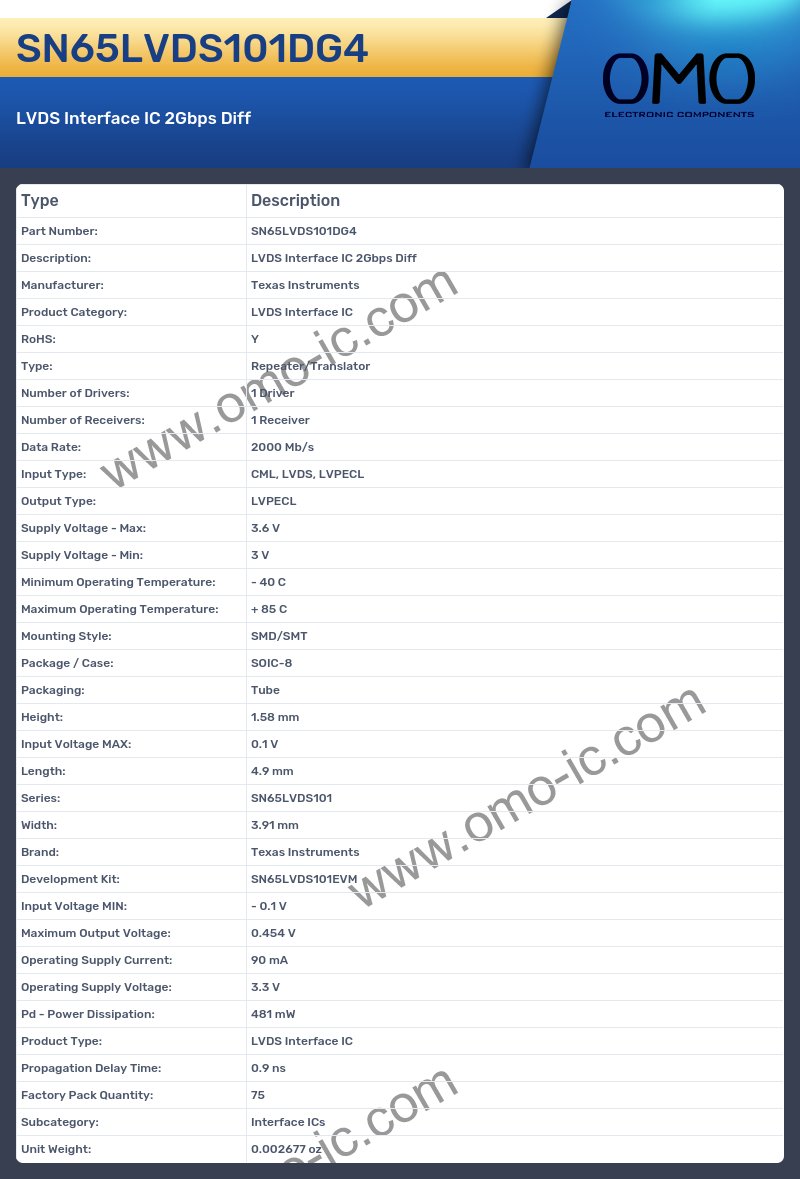

SN65LVDS101DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: LVDS Interface IC
• RoHS: Y
• Type: Repeater/Translator
• Number of Drivers: 1 Driver
• Number of Receivers: 1 Receiver
• Data Rate: 2000 Mb/s
• Input Type: CML, LVDS, LVPECL
• Output Type: LVPECL
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Height: 1.58 mm
• Input Voltage MAX: 0.1 V
• Length: 4.9 mm
• Series: SN65LVDS101
• Width: 3.91 mm
• Brand: Texas Instruments
• Development Kit: SN65LVDS101EVM
• Input Voltage MIN: - 0.1 V
• Maximum Output Voltage: 0.454 V
• Operating Supply Current: 90 mA
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 481 mW
• Product Type: LVDS Interface IC
• Propagation Delay Time: 0.9 ns
• Factory Pack Quantity: 75
• Subcategory: Interface ICs
• Unit Weight: 0.002677 oz
