SG2524DRG4 Overview

This product is manufactured by Texas Instruments. Boost, Buck, Flyback, Forward, Push-Pull Topology 2 Output is the number of outputs provided by this product. 0.13 kHz to 722 kHz is 60 kHz. Output current: 50 mA The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 1.58 mm. 9.9 mm long This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 100 ns fall time Switching Controllers product type Rise Time is 200 ns. 2500 of 100 PMIC - Power Management ICs as subcategory 1. 0.004998 oz of Unit Weight

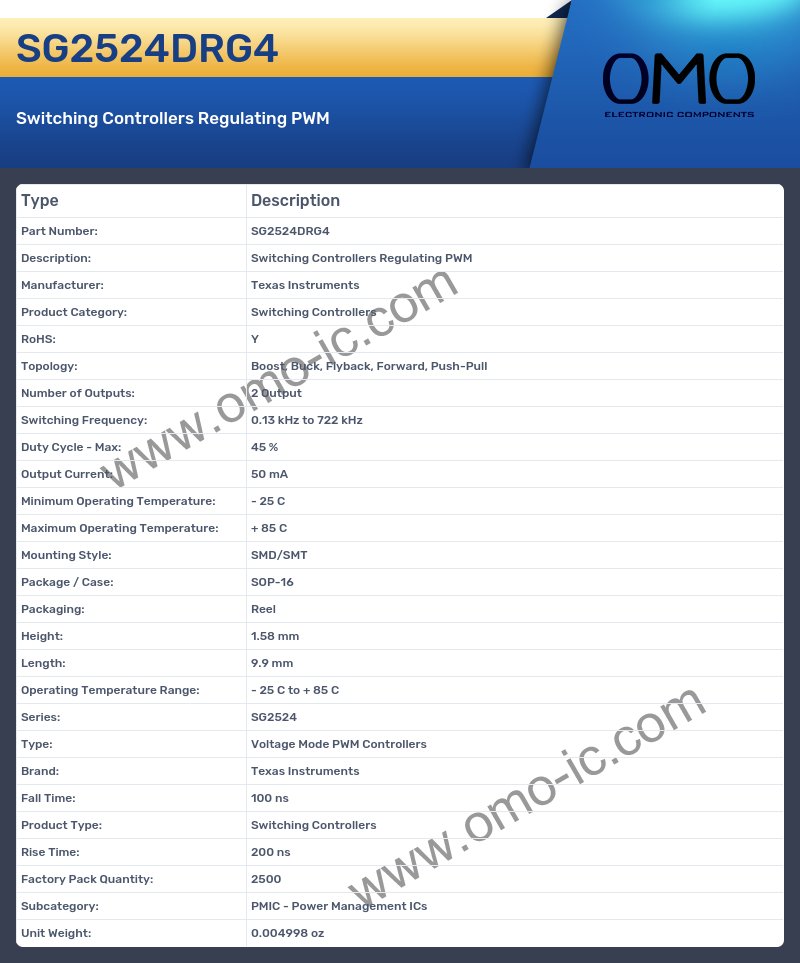

SG2524DRG4 Image

SG2524DRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Flyback, Forward, Push-Pull
• Number of Outputs: 2 Output
• Switching Frequency: 0.13 kHz to 722 kHz
• Duty Cycle - Max: 45 %
• Output Current: 50 mA
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Reel
• Height: 1.58 mm
• Length: 9.9 mm
• Operating Temperature Range: - 25 C to + 85 C
• Series: SG2524
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 100 ns
• Product Type: Switching Controllers
• Rise Time: 200 ns
• Factory Pack Quantity: 2500
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004998 oz
