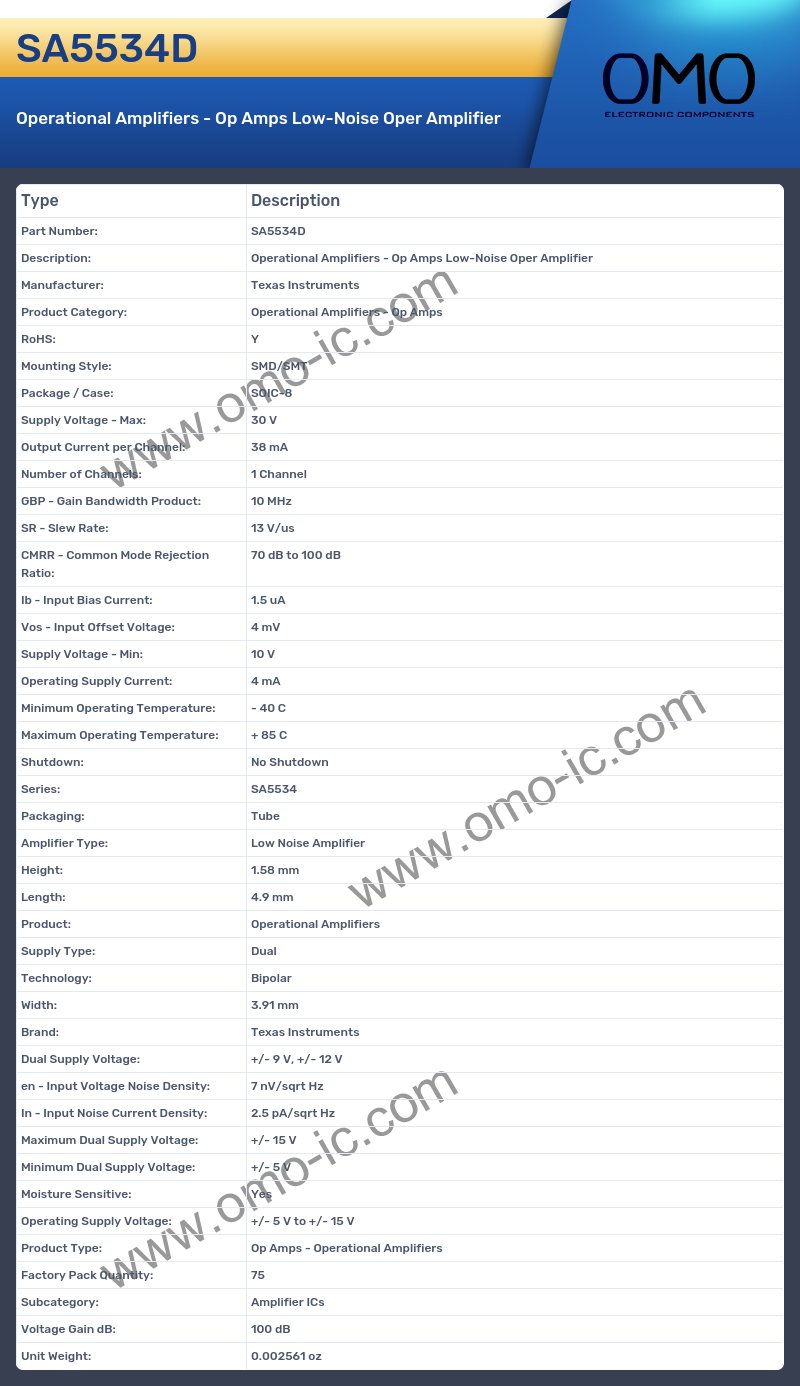

SA5534D Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Supply Voltage - Max: 30 V
• Output Current per Channel: 38 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 10 MHz
• SR - Slew Rate: 13 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB to 100 dB
• Ib - Input Bias Current: 1.5 uA
• Vos - Input Offset Voltage: 4 mV
• Supply Voltage - Min: 10 V
• Operating Supply Current: 4 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: SA5534
• Packaging: Tube
• Amplifier Type: Low Noise Amplifier
• Height: 1.58 mm
• Length: 4.9 mm
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 9 V, +/- 12 V
• en - Input Voltage Noise Density: 7 nV/sqrt Hz
• In - Input Noise Current Density: 2.5 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: +/- 5 V
• Moisture Sensitive: Yes
• Operating Supply Voltage: +/- 5 V to +/- 15 V
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Voltage Gain dB: 100 dB
• Unit Weight: 0.002561 oz
