PIC16F1824-E/SL

PIC16F1824-E/SL Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 32 MHz. The Program Memory Size of this product is 4 kB. The Data RAM Size of this product is 256 B. The ADC Resolution of this product is 10 bit. 1.8 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.25 mm. 8.65 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The SRAM. The Data ROM Size is 256 B. EEPROM is the data ROM type. Interface Type: EUSART, I2C, SPI The product has 8 ADC channels. 8-bit Microcontrollers - MCU product type 57 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.5 V The product's PIC is Blue Gecko. 1. 0.011923 oz of Unit Weight

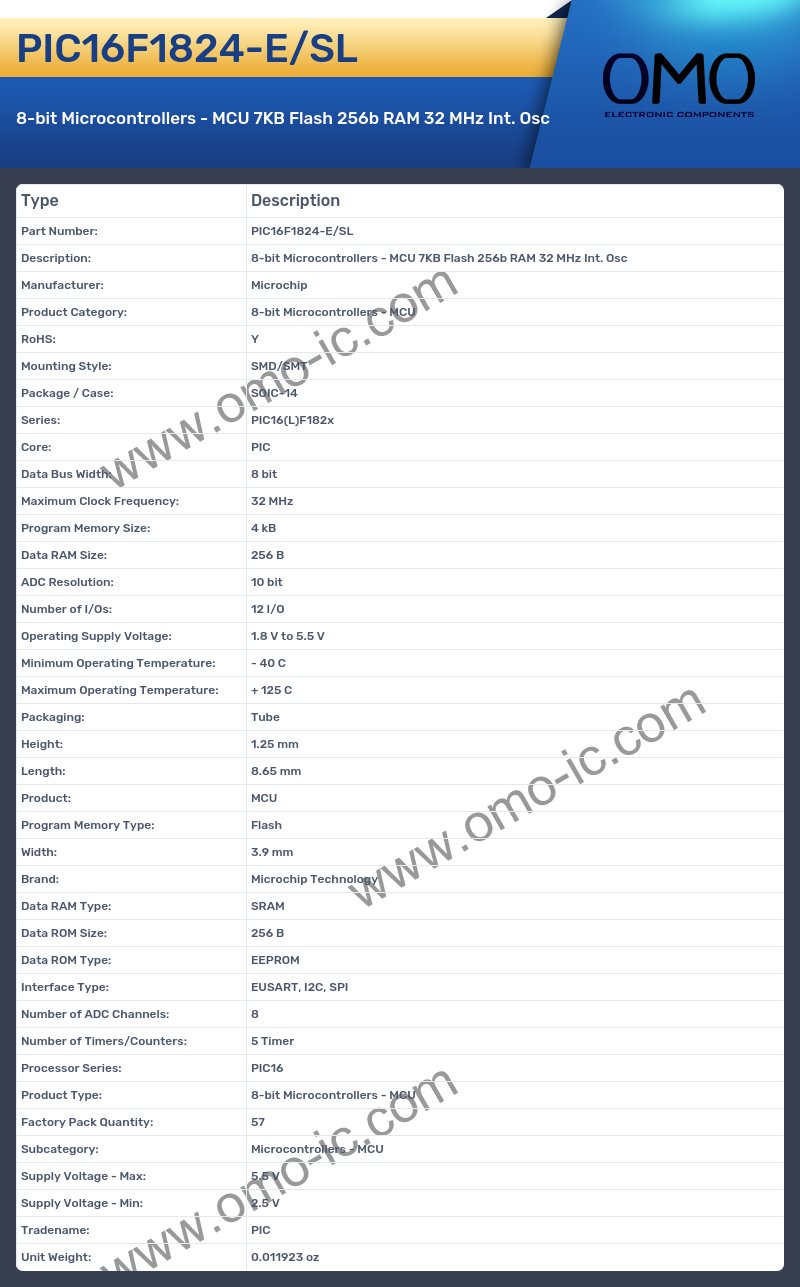

PIC16F1824-E/SL Image

PIC16F1824-E/SL Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Series: PIC16(L)F182x
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 32 MHz
• Program Memory Size: 4 kB
• Data RAM Size: 256 B
• ADC Resolution: 10 bit
• Number of I/Os: 12 I/O
• Operating Supply Voltage: 1.8 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 1.25 mm
• Length: 8.65 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 3.9 mm
• Brand: Microchip Technology
• Data RAM Type: SRAM
• Data ROM Size: 256 B
• Data ROM Type: EEPROM
• Interface Type: EUSART, I2C, SPI
• Number of ADC Channels: 8
• Number of Timers/Counters: 5 Timer
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 57
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.5 V
• Tradename: PIC
• Unit Weight: 0.011923 oz
