PGA205BPG4

PGA205BPG4 Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 2 nA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is PGA. The height of the product is 4.57 mm. 19.3 mm long Instrumentation Amplifiers Supply Type: Dual Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Voltage Feedback Topology Bandwidth at -3 dB is 1 MHz 0.024 % is 0.2%. Gain ratio is 1 V/V, 2 V/V, 4 V/V, 8 V/V. INL is within 0.002 % 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 9 V to 36 V operating supply voltage range Instrumentation Amplifiers product type 25 of 100 Amplifier ICs as subcategory 1. 0.037172 oz of Unit Weight

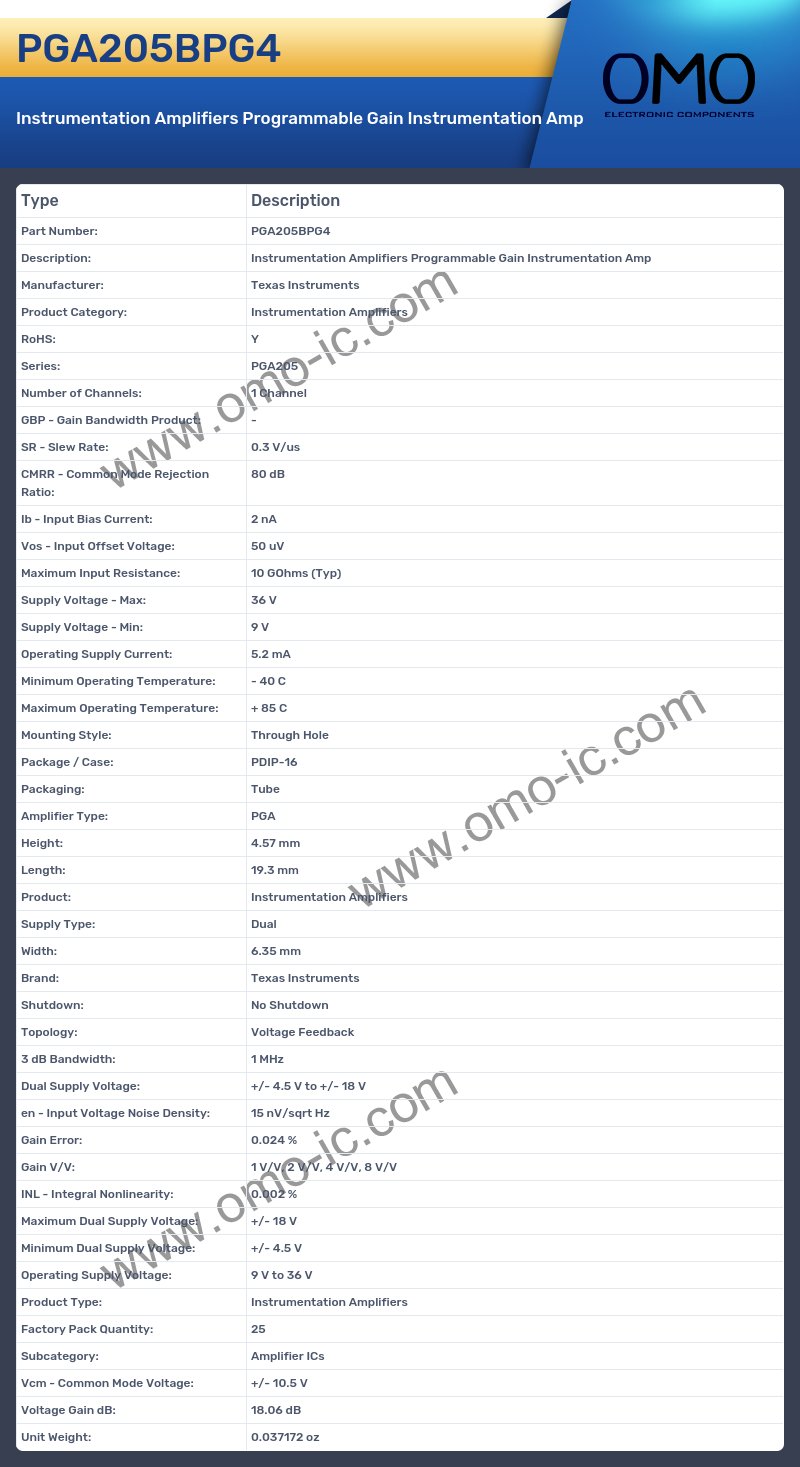

PGA205BPG4 Image

PGA205BPG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: PGA205
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 0.3 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB
• Ib - Input Bias Current: 2 nA
• Vos - Input Offset Voltage: 50 uV
• Maximum Input Resistance: 10 GOhms (Typ)
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Operating Supply Current: 5.2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Amplifier Type: PGA
• Height: 4.57 mm
• Length: 19.3 mm
• Product: Instrumentation Amplifiers
• Supply Type: Dual
• Width: 6.35 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Topology: Voltage Feedback
• 3 dB Bandwidth: 1 MHz
• Dual Supply Voltage: +/- 4.5 V to +/- 18 V
• en - Input Voltage Noise Density: 15 nV/sqrt Hz
• Gain Error: 0.024 %
• Gain V/V: 1 V/V, 2 V/V, 4 V/V, 8 V/V
• INL - Integral Nonlinearity: 0.002 %
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 9 V to 36 V
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: +/- 10.5 V
• Voltage Gain dB: 18.06 dB
• Unit Weight: 0.037172 oz
