PCA9535BS,118

PCA9535BS,118 Overview

This product is manufactured by NXP. Interface Type: I2C, Serial, SMBus The Maximum Clock Frequency of this product is 400 kHz. Interrupt output supported: With Interrupt 2.3 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. HVQFN-24 package/case type is utilized by this product. Reel packaging for easy dispensing 5 V Input Voltage Output current: 50 mA The output type is Open Drain. Output Voltage is 5 V I/O Expanders This device belongs to the General Purpose type. NXP Semiconductors is a trusted brand for quality electronics The product uses the PCA9535 logic family. I2C, SMBus. 200 mW I/O Expanders product type 6000 of 100 Interface ICs as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.3 V This product is also known by the 935273944118 number of 934069005115. 1. 0.001305 oz of Unit Weight

PCA9535BS,118 Image

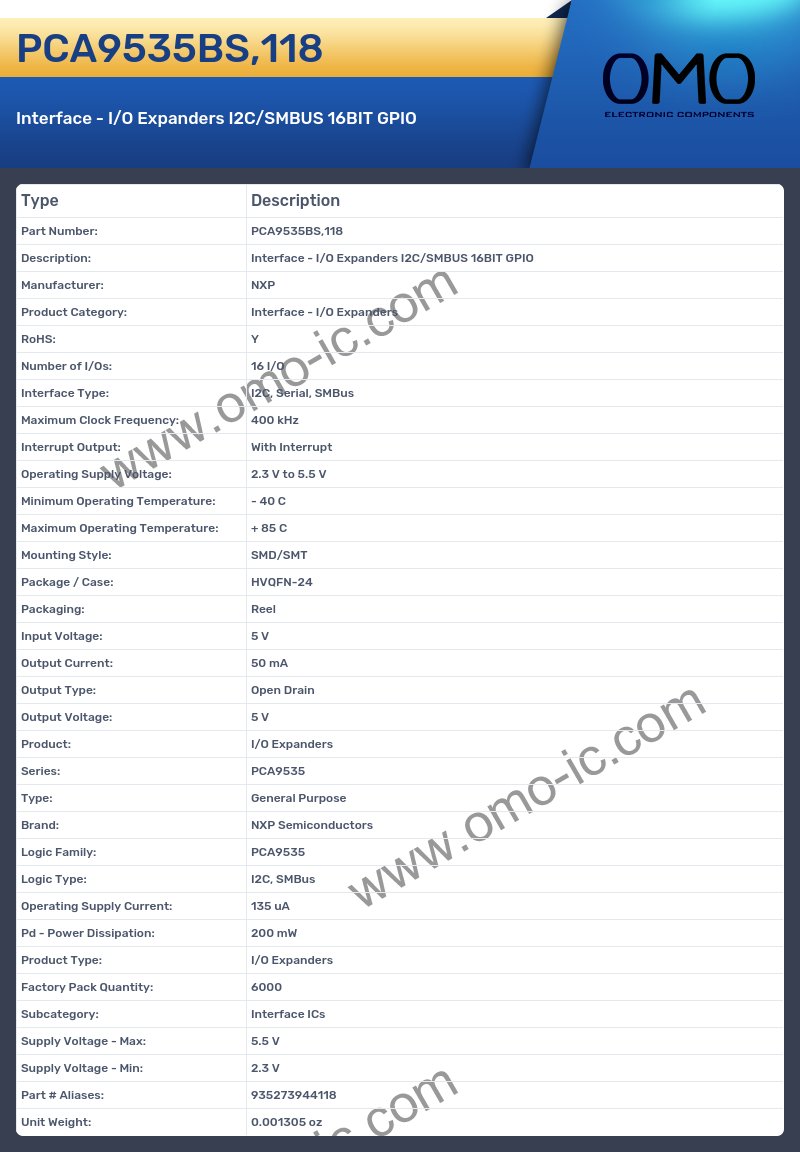

PCA9535BS,118 Specifications

• Manufacturer: NXP
• Product Category: Interface - I/O Expanders
• RoHS: Y
• Number of I/Os: 16 I/O
• Interface Type: I2C, Serial, SMBus
• Maximum Clock Frequency: 400 kHz
• Interrupt Output: With Interrupt
• Operating Supply Voltage: 2.3 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: HVQFN-24
• Packaging: Reel
• Input Voltage: 5 V
• Output Current: 50 mA
• Output Type: Open Drain
• Output Voltage: 5 V
• Product: I/O Expanders
• Series: PCA9535
• Type: General Purpose
• Brand: NXP Semiconductors
• Logic Family: PCA9535
• Logic Type: I2C, SMBus
• Operating Supply Current: 135 uA
• Pd - Power Dissipation: 200 mW
• Product Type: I/O Expanders
• Factory Pack Quantity: 6000
• Subcategory: Interface ICs
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.3 V
• Part # Aliases: 935273944118
• Unit Weight: 0.001305 oz
