MCP14700-E/SN

MCP14700-E/SN Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Output current: 2 A Rise Time is 10 ns. 10 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Output Voltage is 0.025 V Microchip Technology is a trusted brand for quality electronics 36 ns maximum turn-off delay time The 36 ns. Yes regarding Moisture Sensitivity Gate Drivers product type 100 of 100 PMIC - Power Management ICs as subcategory 1. 0.019048 oz of Unit Weight

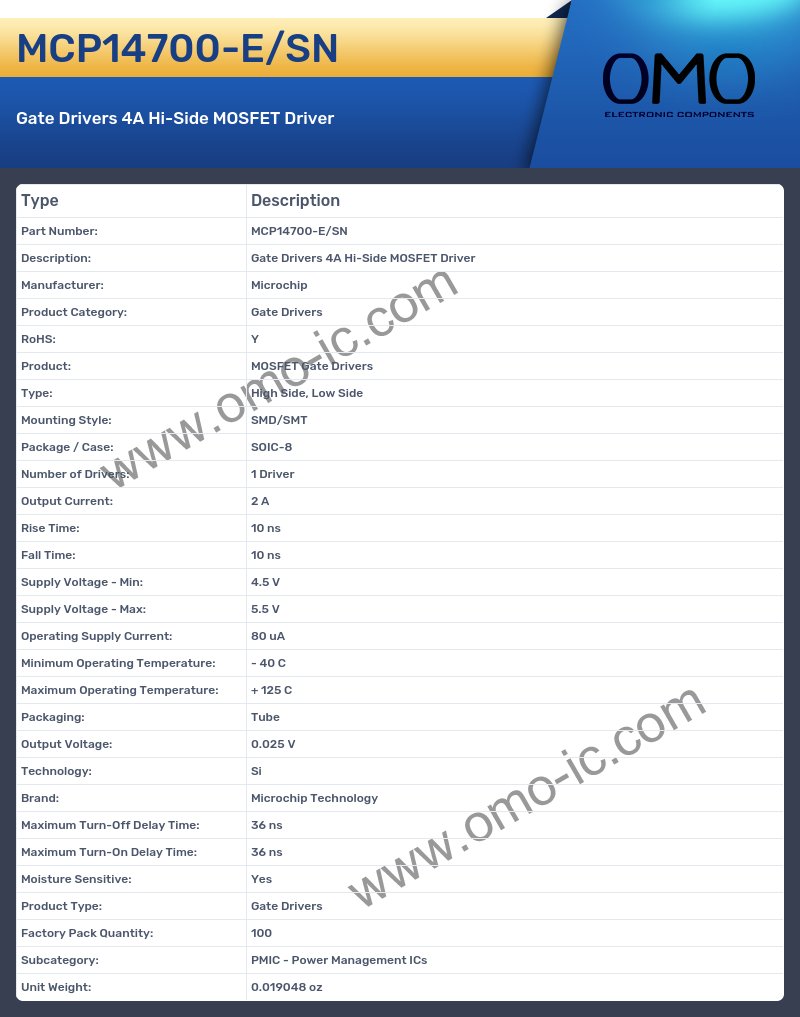

MCP14700-E/SN Image

MCP14700-E/SN Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Drivers: 1 Driver
• Output Current: 2 A
• Rise Time: 10 ns
• Fall Time: 10 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Operating Supply Current: 80 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Output Voltage: 0.025 V
• Technology: Si
• Brand: Microchip Technology
• Maximum Turn-Off Delay Time: 36 ns
• Maximum Turn-On Delay Time: 36 ns
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 100
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.019048 oz
