MCP1402T-E/OT

MCP1402T-E/OT Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOT-23-5 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 500 mA Rise Time is 19 ns. 15 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 18 V 390 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Microchip Technology is a trusted brand for quality electronics CMOS, TTL. 4.5 V to 18 V operating supply voltage range Gate Drivers product type 3000 of 100 PMIC - Power Management ICs as subcategory 1. 0.001587 oz of Unit Weight

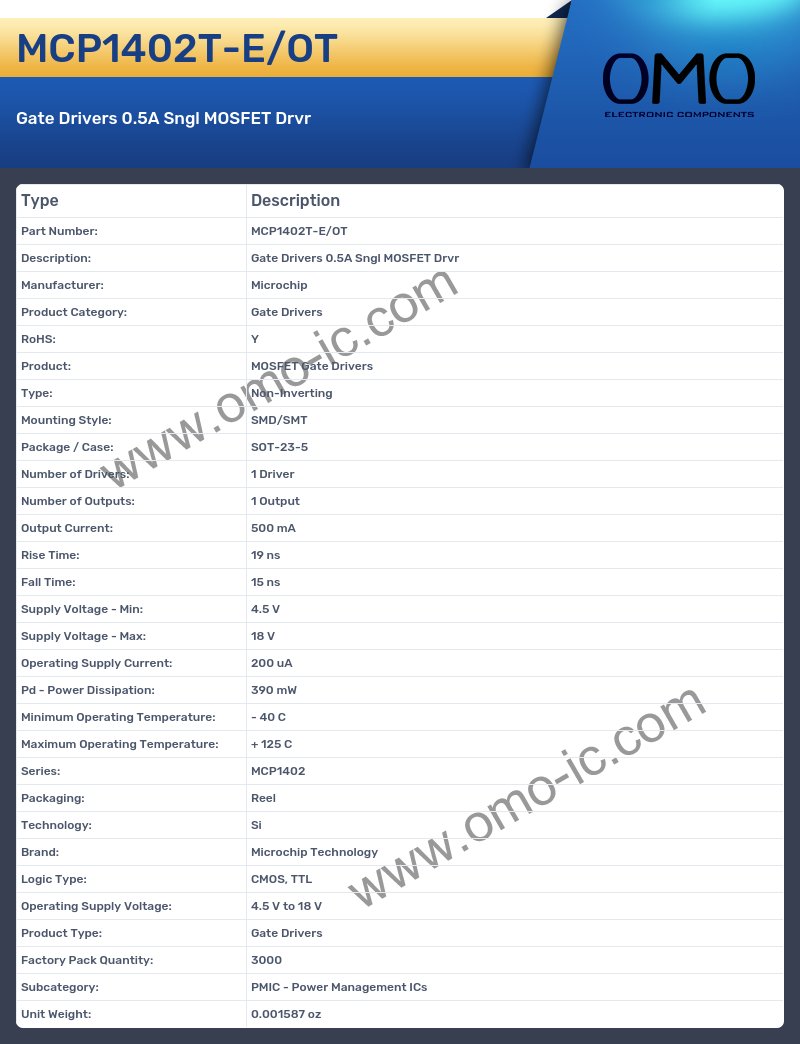

MCP1402T-E/OT Image

MCP1402T-E/OT Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-5
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 500 mA
• Rise Time: 19 ns
• Fall Time: 15 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 200 uA
• Pd - Power Dissipation: 390 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: MCP1402
• Packaging: Reel
• Technology: Si
• Brand: Microchip Technology
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 4.5 V to 18 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 3000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001587 oz
