MB9DF566MADEQ-GTK5E1 Overview

This product is manufactured by Cypress Semiconductor. The product can operate at a maximum temperature of SMD/SMT. TEQFP-208 package/case type is utilized by this product. This product's ARM Cortex R5F is an ARM Cortex M3. This product has a Data Bus Width of 32 bit. The Maximum Clock Frequency of this product is 200 MHz. The Program Memory Size of this product is 2.25 MB. The Data RAM Size of this product is 256 kB. The ADC Resolution of this product is 12 bit. 1.2 V, 5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tray packaging for easy dispensing MCU+FPU The Flash of this product is Flash. Cypress Semiconductor is a trusted brand for quality electronics The SRAM. The Data ROM Size is 16 kB. BootROM is the data ROM type. Interface Type: CAN, CSIO, LIN, SPI, UART Yes regarding Moisture Sensitivity The product has 40 Channel ADC channels. ARM Microcontrollers - MCU product type 36 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.1 V

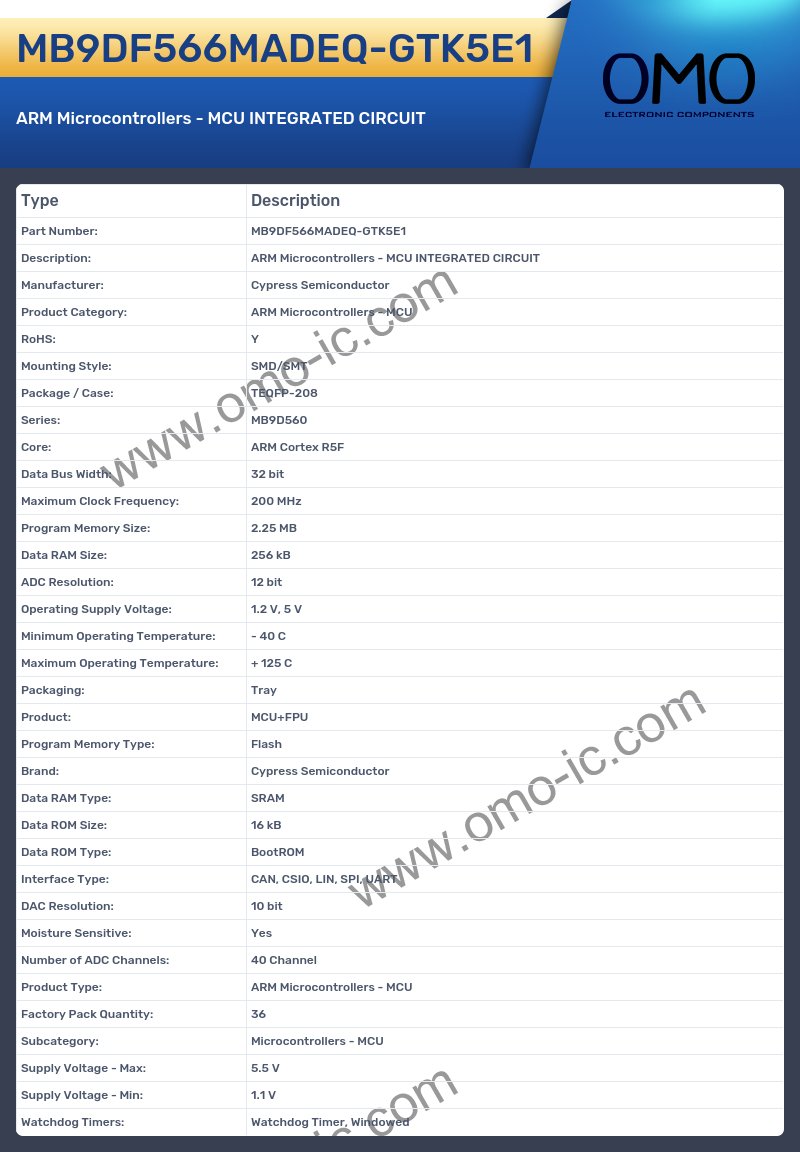

MB9DF566MADEQ-GTK5E1 Image

MB9DF566MADEQ-GTK5E1 Specifications

• Manufacturer: Cypress Semiconductor
• Product Category: ARM Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TEQFP-208
• Series: MB9D560
• Core: ARM Cortex R5F
• Data Bus Width: 32 bit
• Maximum Clock Frequency: 200 MHz
• Program Memory Size: 2.25 MB
• Data RAM Size: 256 kB
• ADC Resolution: 12 bit
• Operating Supply Voltage: 1.2 V, 5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tray
• Product: MCU+FPU
• Program Memory Type: Flash
• Brand: Cypress Semiconductor
• Data RAM Type: SRAM
• Data ROM Size: 16 kB
• Data ROM Type: BootROM
• Interface Type: CAN, CSIO, LIN, SPI, UART
• DAC Resolution: 10 bit
• Moisture Sensitive: Yes
• Number of ADC Channels: 40 Channel
• Product Type: ARM Microcontrollers - MCU
• Factory Pack Quantity: 36
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 1.1 V
• Watchdog Timers: Watchdog Timer, Windowed
