M74HCT126B1R

M74HCT126B1R Overview

This product is manufactured by STMicroelectronics. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. DIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 5.1 - 0.51 mm (Max) (Min). 20 mm (Max) long The output type is 3-State. STMicroelectronics is a trusted brand for quality electronics The product uses the HCT logic family. CMOS. This product is equipped with 4 for efficient performance. Maximum supply current: 4 uA This product has a - 6 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 6 mA 4.5 V to 5.5 V operating supply voltage range 500 mW (1/2 W) Buffers & Line Drivers product type The propagation delay time is 27 ns at 4.5 V. 25 of 100 Logic ICs as subcategory 1. 0.057144 oz of Unit Weight

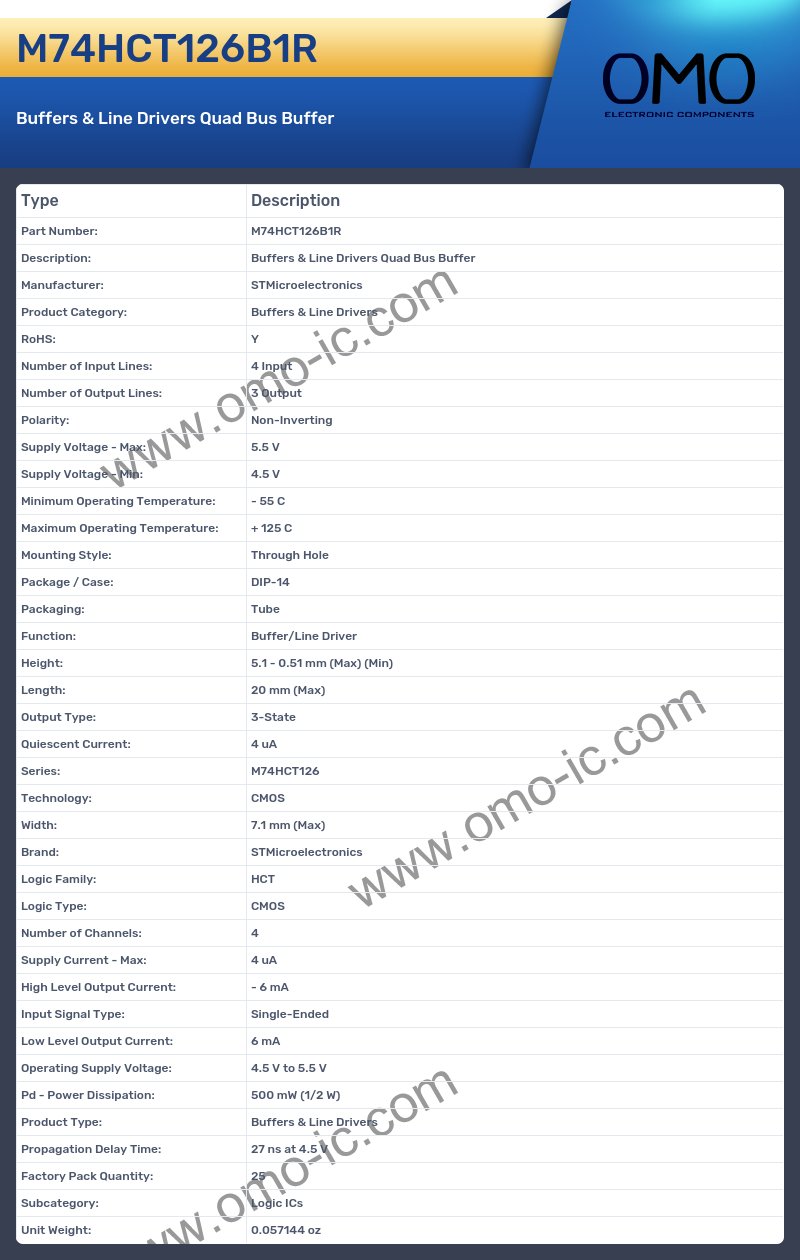

M74HCT126B1R Image

M74HCT126B1R Specifications

• Manufacturer: STMicroelectronics
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 4 Input
• Number of Output Lines: 3 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: DIP-14
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 5.1 - 0.51 mm (Max) (Min)
• Length: 20 mm (Max)
• Output Type: 3-State
• Quiescent Current: 4 uA
• Series: M74HCT126
• Technology: CMOS
• Width: 7.1 mm (Max)
• Brand: STMicroelectronics
• Logic Family: HCT
• Logic Type: CMOS
• Number of Channels: 4
• Supply Current - Max: 4 uA
• High Level Output Current: - 6 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 6 mA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 27 ns at 4.5 V
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.057144 oz
