LTC1821-1BIGW#PBF

LTC1821-1BIGW#PBF Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 2 us settling time Interface Type: Parallel External is the reference type. Supply Voltage - Max: 16.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-36 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.64 mm. Parallel input type The output type is Voltage Buffered. This device belongs to the Ultra Precise type. R-2R architecture Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 1 LSB, ensuring accurate and precise analog-to-digital conversion. 16 LSB is 0.2%. INL is within 2 LSB 40 mW DACs - Digital to Analog Converters product type 32 of 100 Data Converter ICs as subcategory

LTC1821-1BIGW#PBF Image

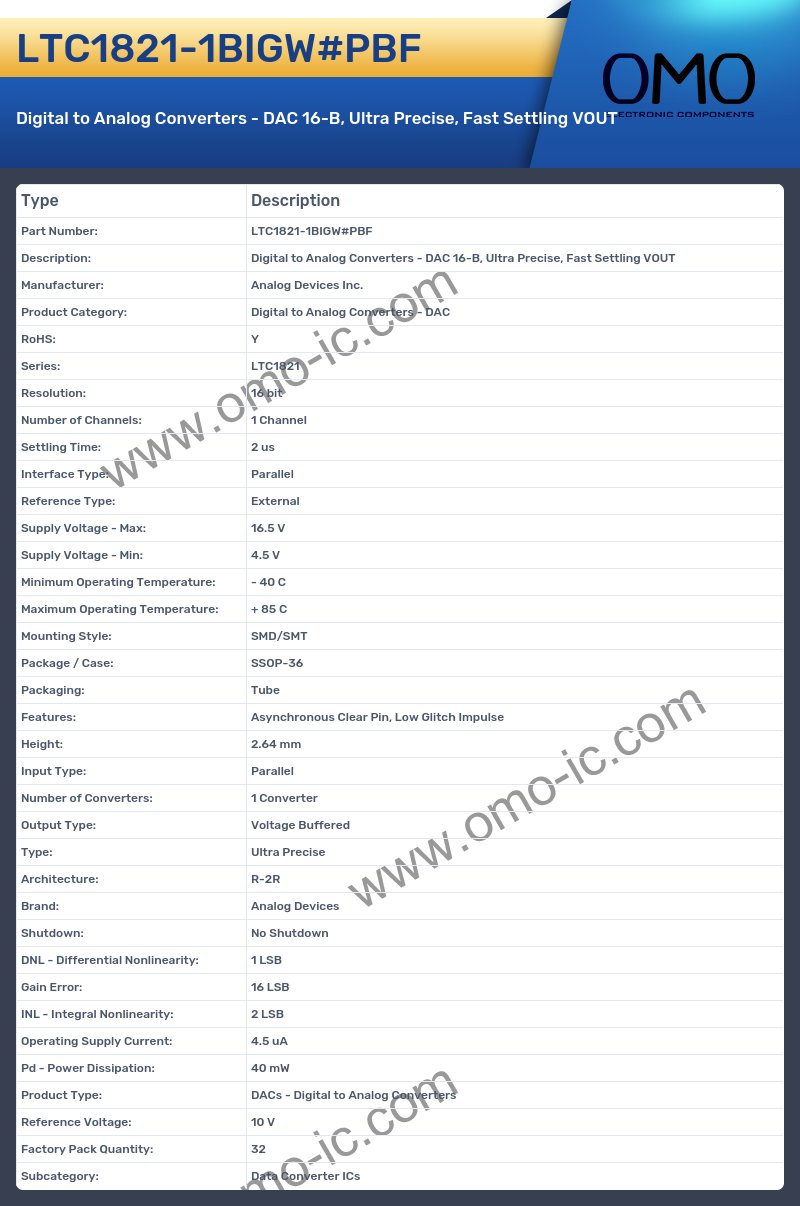

LTC1821-1BIGW#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: LTC1821
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Settling Time: 2 us
• Interface Type: Parallel
• Reference Type: External
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-36
• Packaging: Tube
• Features: Asynchronous Clear Pin, Low Glitch Impulse
• Height: 2.64 mm
• Input Type: Parallel
• Number of Converters: 1 Converter
• Output Type: Voltage Buffered
• Type: Ultra Precise
• Architecture: R-2R
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 1 LSB
• Gain Error: 16 LSB
• INL - Integral Nonlinearity: 2 LSB
• Operating Supply Current: 4.5 uA
• Pd - Power Dissipation: 40 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 10 V
• Factory Pack Quantity: 32
• Subcategory: Data Converter ICs
