LP339N

LP339N Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 4 Channel for efficient performance. The output type is Rail-to-Rail. This product has an 25 nA of 5 uA for precise signal processing. Supply Voltage - Max: 30 V Supply Voltage - Min: 5 V 8 us response time The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 19.3 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Low Power Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 1. The maximum dual supply voltage is +/- 15 V. +/- 1.5 V minimum dual supply voltage 5 V to 30 V operating supply voltage range 570 mW Analog Comparators product type 25 of 100 Amplifier ICs as subcategory 1. 0.032734 oz of Unit Weight

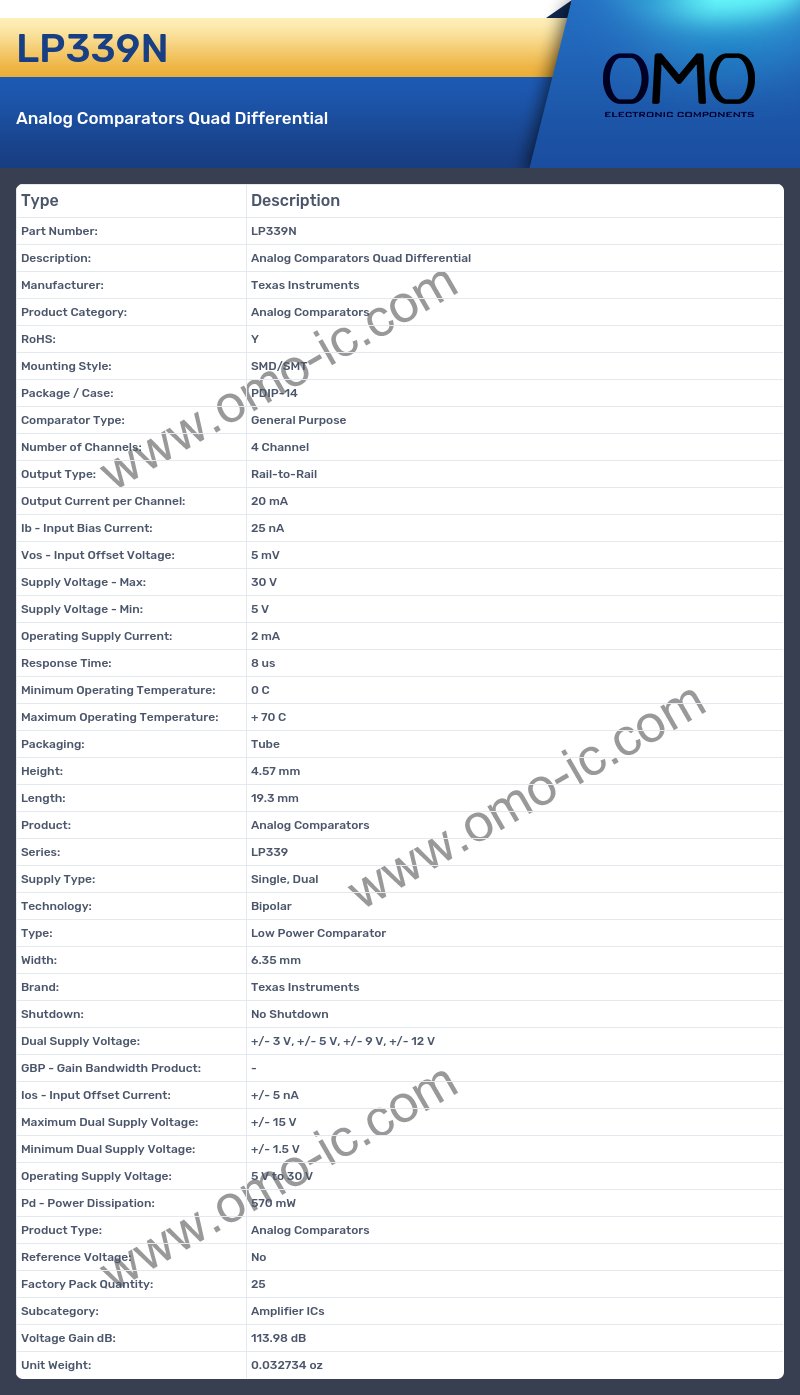

LP339N Image

LP339N Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Comparator Type: General Purpose
• Number of Channels: 4 Channel
• Output Type: Rail-to-Rail
• Output Current per Channel: 20 mA
• Ib - Input Bias Current: 25 nA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 5 V
• Operating Supply Current: 2 mA
• Response Time: 8 us
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Height: 4.57 mm
• Length: 19.3 mm
• Product: Analog Comparators
• Series: LP339
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Low Power Comparator
• Width: 6.35 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• GBP - Gain Bandwidth Product: -
• Ios - Input Offset Current: +/- 5 nA
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 5 V to 30 V
• Pd - Power Dissipation: 570 mW
• Product Type: Analog Comparators
• Reference Voltage: No
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Voltage Gain dB: 113.98 dB
• Unit Weight: 0.032734 oz
