LP0701LG-G

LP0701LG-G Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 16.5 V 700 mA continuous drain current Rds On value of 1.5 Ohms Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.5 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 1.65 mm. 4.9 mm long MOSFET Small Signal The Transistor Type is 1 P-Channel. This device belongs to the MOSFET type. Microchip Technology is a trusted brand for quality electronics 20 ns fall time MOSFET product type Rise Time is 20 ns. 3300 of 100 MOSFETs as subcategory Turn-off delay time is 30 ns. The typical turn-on delay time is 20 ns. 1. 0.002998 oz of Unit Weight

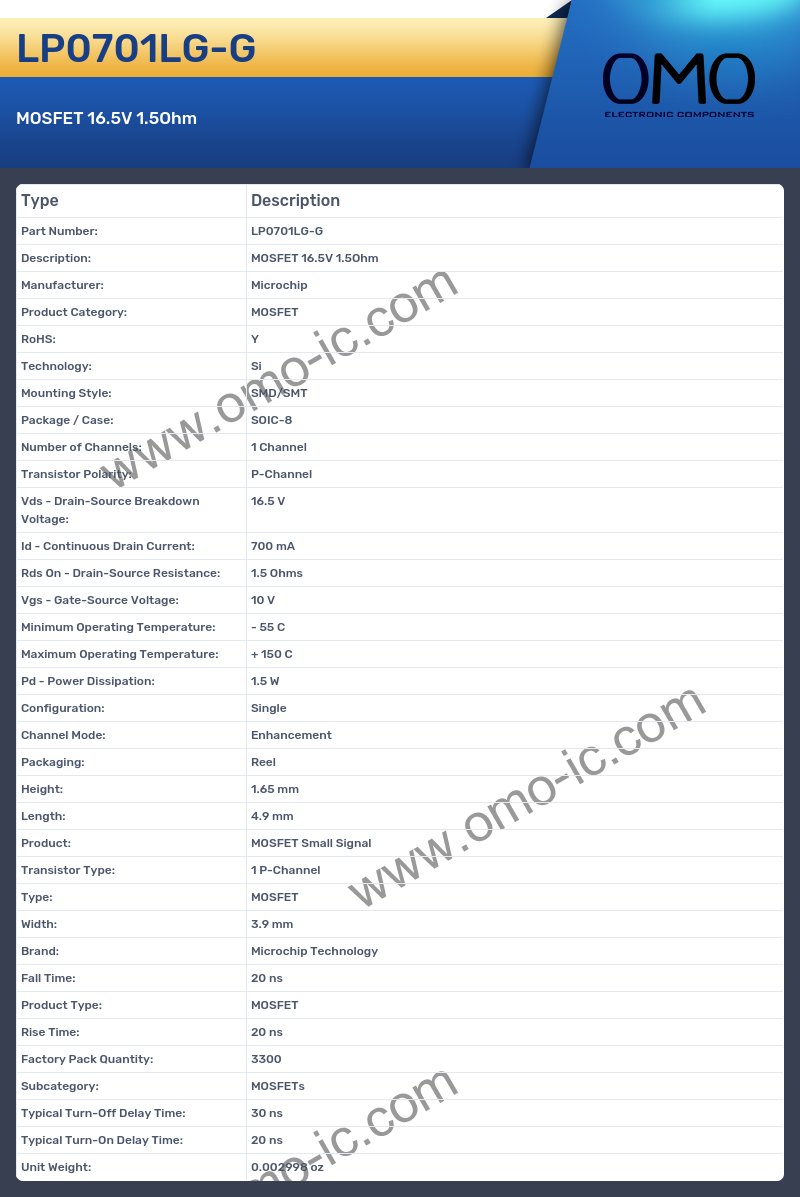

LP0701LG-G Image

LP0701LG-G Specifications

• Manufacturer: Microchip
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 16.5 V
• Id - Continuous Drain Current: 700 mA
• Rds On - Drain-Source Resistance: 1.5 Ohms
• Vgs - Gate-Source Voltage: 10 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.5 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 1.65 mm
• Length: 4.9 mm
• Product: MOSFET Small Signal
• Transistor Type: 1 P-Channel
• Type: MOSFET
• Width: 3.9 mm
• Brand: Microchip Technology
• Fall Time: 20 ns
• Product Type: MOSFET
• Rise Time: 20 ns
• Factory Pack Quantity: 3300
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 30 ns
• Typical Turn-On Delay Time: 20 ns
• Unit Weight: 0.002998 oz
