LMC6772BIM

LMC6772BIM Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 2 Channel for efficient performance. The output type is Open Drain. This product has an 400 fA of 5 uA for precise signal processing. Supply Voltage - Max: 15 V Supply Voltage - Min: 2.7 V 4 us response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.45 mm. Rail-to-Rail input type 4.9 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Micro Power Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 75 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 7.5 V. +/- 1.35 V minimum dual supply voltage 3 V, 5 V, 9 V, 12 V operating supply voltage range Analog Comparators product type This product has a 80 dB of 50 dB, providing reliable power supply noise rejection. 95 of 100 Amplifier ICs as subcategory 1. 0.005044 oz of Unit Weight

LMC6772BIM Image

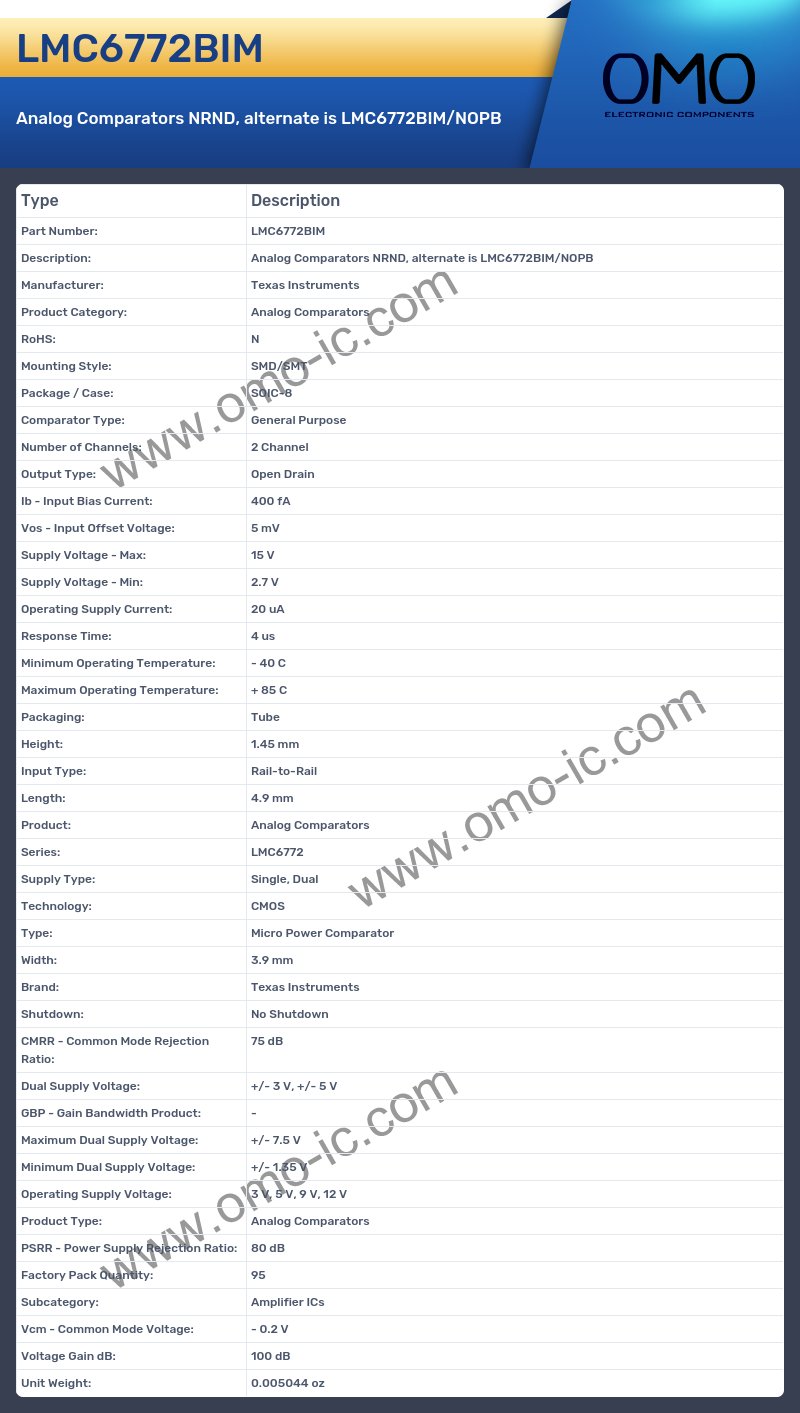

LMC6772BIM Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: N
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Comparator Type: General Purpose
• Number of Channels: 2 Channel
• Output Type: Open Drain
• Ib - Input Bias Current: 400 fA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 15 V
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 20 uA
• Response Time: 4 us
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.45 mm
• Input Type: Rail-to-Rail
• Length: 4.9 mm
• Product: Analog Comparators
• Series: LMC6772
• Supply Type: Single, Dual
• Technology: CMOS
• Type: Micro Power Comparator
• Width: 3.9 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 75 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 7.5 V
• Minimum Dual Supply Voltage: +/- 1.35 V
• Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V
• Product Type: Analog Comparators
• PSRR - Power Supply Rejection Ratio: 80 dB
• Factory Pack Quantity: 95
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 0.2 V
• Voltage Gain dB: 100 dB
• Unit Weight: 0.005044 oz
