LM5022QDGSRQ1

LM5022QDGSRQ1 Overview

This product is manufactured by Texas Instruments. Boost Topology 1 Output is the number of outputs provided by this product. 2.2 MHz is 60 kHz. 3 V to 60 V Input Voltage Output Voltage is 1.25 V Output current: 10 A The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. MSOP-10 package/case type is utilized by this product. The AEC-Q100 Qualification Reel packaging for easy dispensing Isolated, Non-Isolated is the isolation property. The output type is Adjustable. Controllers Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 15 ns fall time 3 V to 60 V operating supply voltage range Switching Controllers product type Rise Time is 18 ns. 1000 of 100 PMIC - Power Management ICs as subcategory

LM5022QDGSRQ1 Image

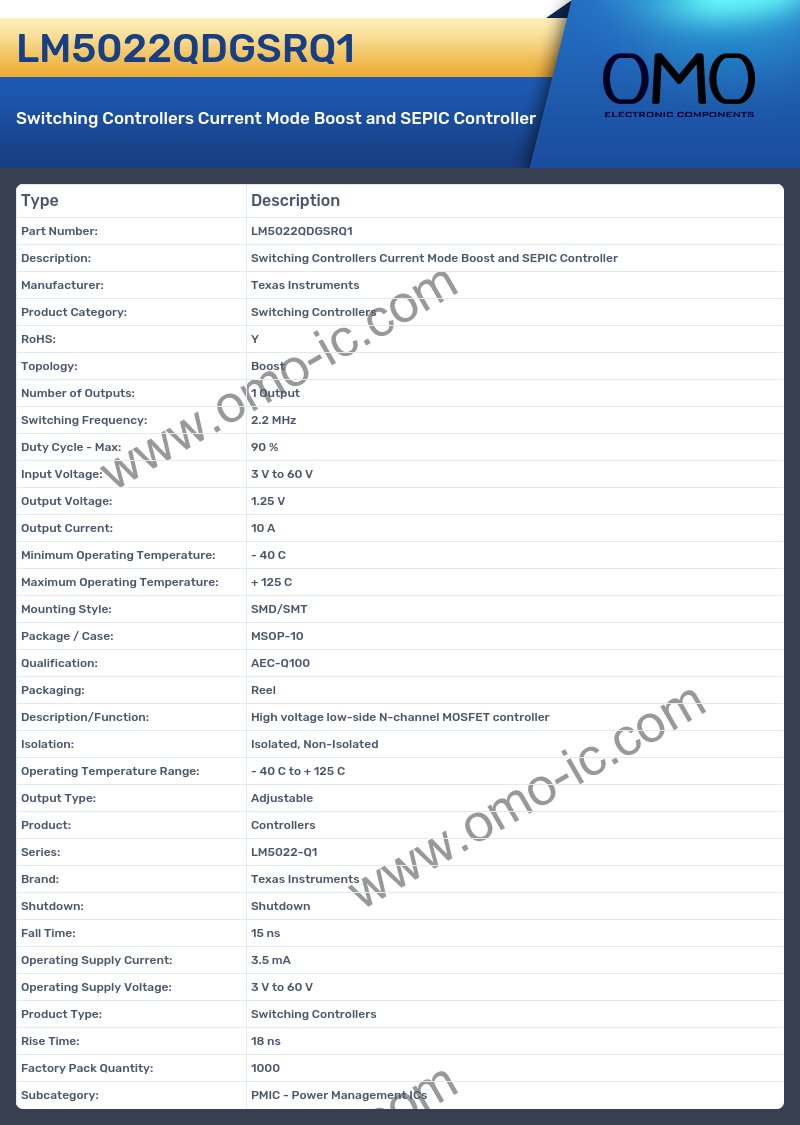

LM5022QDGSRQ1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost
• Number of Outputs: 1 Output
• Switching Frequency: 2.2 MHz
• Duty Cycle - Max: 90 %
• Input Voltage: 3 V to 60 V
• Output Voltage: 1.25 V
• Output Current: 10 A
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: MSOP-10
• Qualification: AEC-Q100
• Packaging: Reel
• Description/Function: High voltage low-side N-channel MOSFET controller
• Isolation: Isolated, Non-Isolated
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: Adjustable
• Product: Controllers
• Series: LM5022-Q1
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 15 ns
• Operating Supply Current: 3.5 mA
• Operating Supply Voltage: 3 V to 60 V
• Product Type: Switching Controllers
• Rise Time: 18 ns
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
