CSD86336Q3DT

CSD86336Q3DT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSON-CLIP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 25 V 20 A continuous drain current Rds On value of 9.1 mOhms Gate-Source Threshold Voltage Range: 1.1 V Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 6 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is Power MOSFET. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 40 S 2 ns fall time MOSFET product type Rise Time is 10 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 7 ns. The typical turn-on delay time is 5 ns.

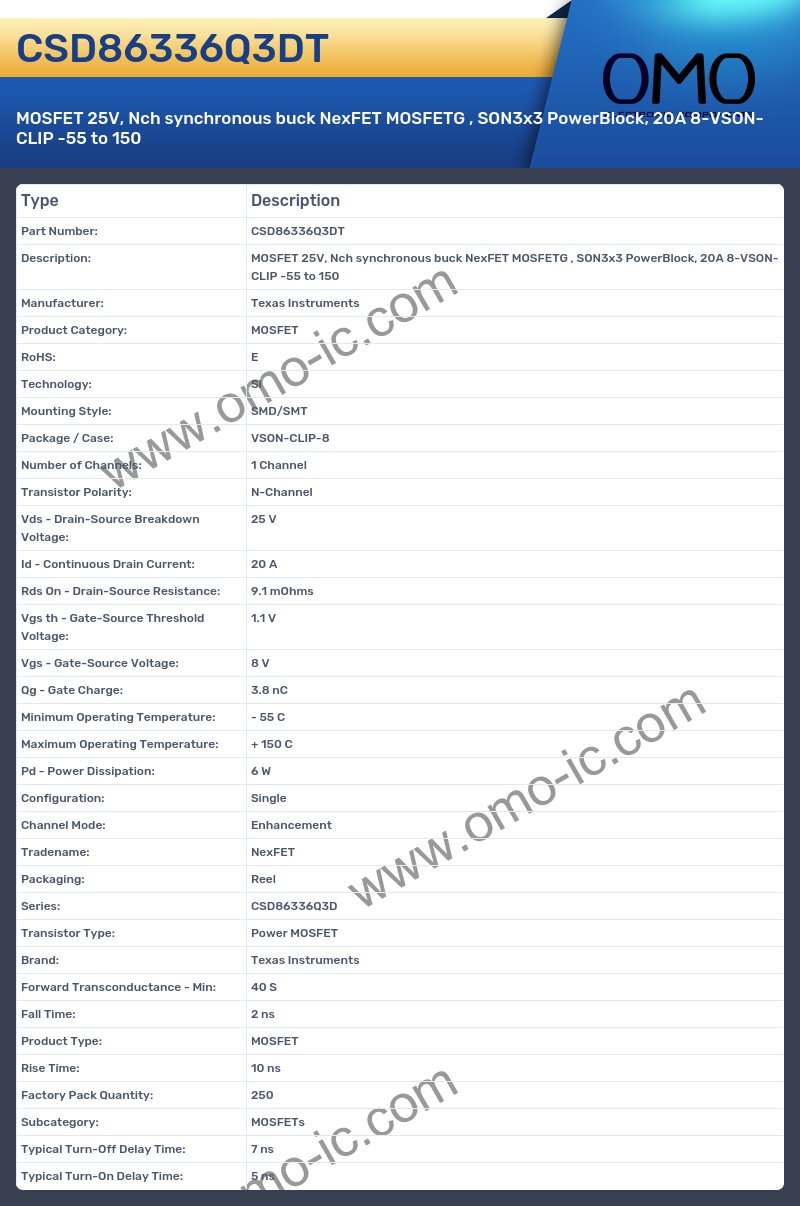

CSD86336Q3DT Image

CSD86336Q3DT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSON-CLIP-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 25 V
• Id - Continuous Drain Current: 20 A
• Rds On - Drain-Source Resistance: 9.1 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.1 V
• Vgs - Gate-Source Voltage: 8 V
• Qg - Gate Charge: 3.8 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 6 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Series: CSD86336Q3D
• Transistor Type: Power MOSFET
• Brand: Texas Instruments
• Forward Transconductance - Min: 40 S
• Fall Time: 2 ns
• Product Type: MOSFET
• Rise Time: 10 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 7 ns
• Typical Turn-On Delay Time: 5 ns
