CSD86311W1723

CSD86311W1723 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-12 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 25 V 5 A continuous drain current Rds On value of 42 mOhms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.5 W This product has a Dual configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.62 mm. 2.32 mm long The Transistor Type is 2 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 6.4 S 2.9 ns fall time MOSFET product type Rise Time is 4.3 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 13.2 ns. The typical turn-on delay time is 5.4 ns. 1. 0.000145 oz of Unit Weight

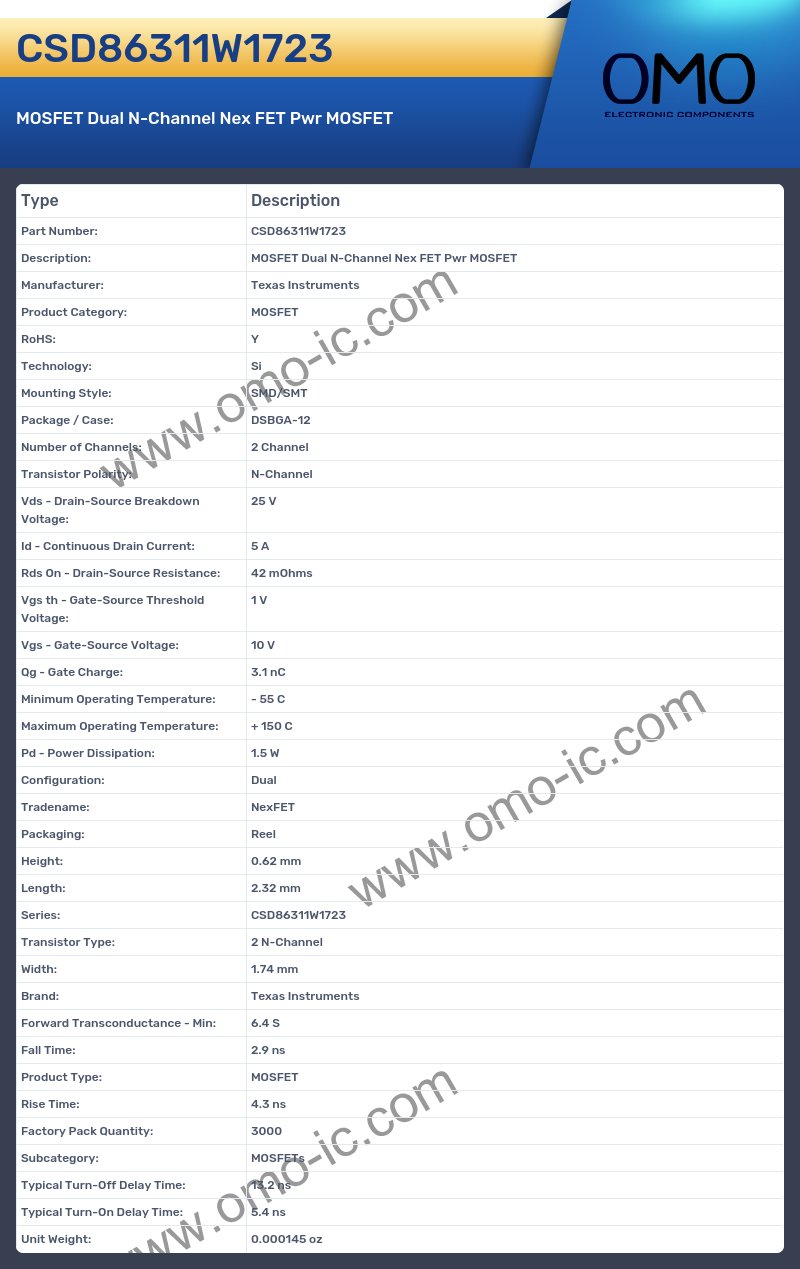

CSD86311W1723 Image

CSD86311W1723 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-12
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 25 V
• Id - Continuous Drain Current: 5 A
• Rds On - Drain-Source Resistance: 42 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 3.1 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.5 W
• Configuration: Dual
• Tradename: NexFET
• Packaging: Reel
• Height: 0.62 mm
• Length: 2.32 mm
• Series: CSD86311W1723
• Transistor Type: 2 N-Channel
• Width: 1.74 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 6.4 S
• Fall Time: 2.9 ns
• Product Type: MOSFET
• Rise Time: 4.3 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 13.2 ns
• Typical Turn-On Delay Time: 5.4 ns
• Unit Weight: 0.000145 oz
