CD74HCT4514E

CD74HCT4514E Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the HCT logic family. Number of bits: 4 bit The propagation delay time is 75 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a With input Lathes The height of the product is 4.57 mm. 0.8 V to + 2 V Input Voltage 31.75 mm long This product has Single circuit. Output current: +/- 20 mA Output Voltage is 4.5 V to 5.5 V Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. Maximum supply current: 0.008 mA This product has a - 4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 4 mA The Maximum Clock Frequency of this product is 25 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 15 of 100 Logic ICs as subcategory 1. 0.131759 oz of Unit Weight

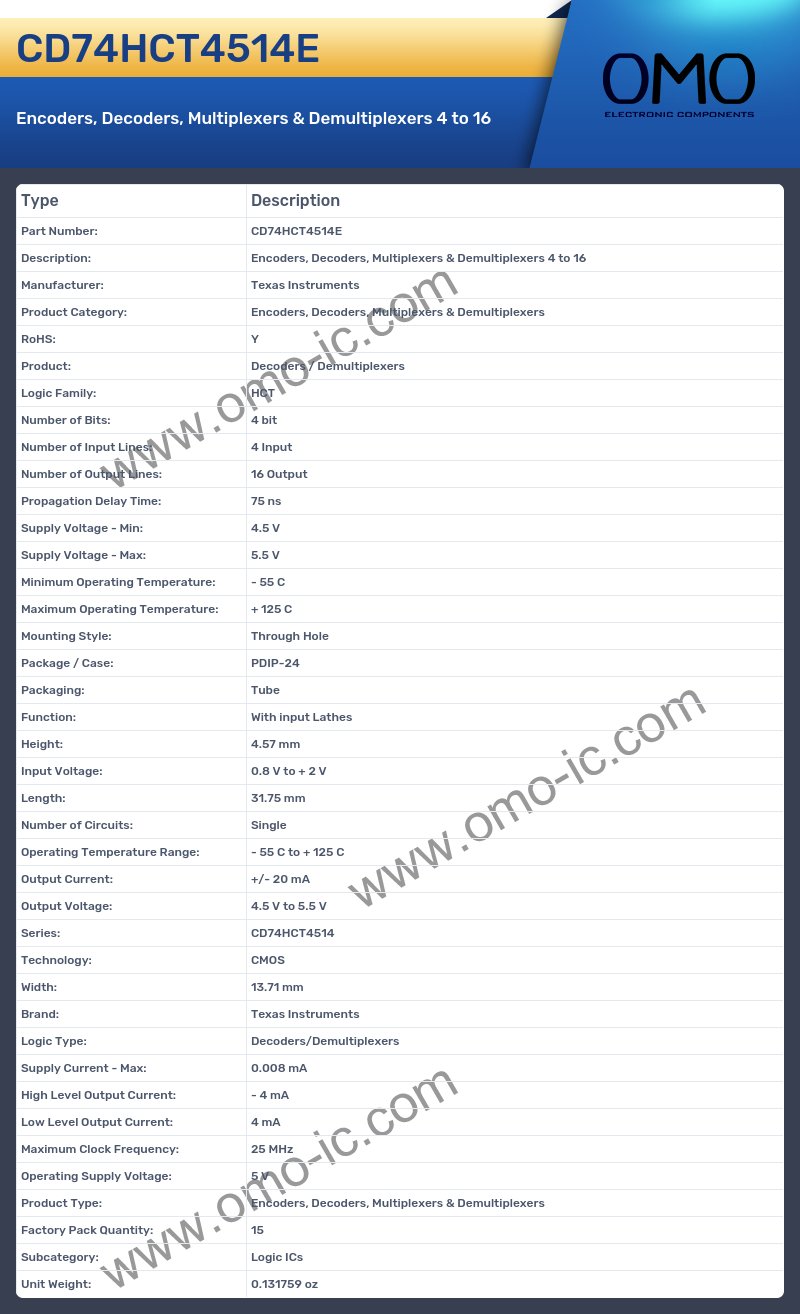

CD74HCT4514E Image

CD74HCT4514E Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: HCT
• Number of Bits: 4 bit
• Number of Input Lines: 4 Input
• Number of Output Lines: 16 Output
• Propagation Delay Time: 75 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-24
• Packaging: Tube
• Function: With input Lathes
• Height: 4.57 mm
• Input Voltage: 0.8 V to + 2 V
• Length: 31.75 mm
• Number of Circuits: Single
• Operating Temperature Range: - 55 C to + 125 C
• Output Current: +/- 20 mA
• Output Voltage: 4.5 V to 5.5 V
• Series: CD74HCT4514
• Technology: CMOS
• Width: 13.71 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• Supply Current - Max: 0.008 mA
• High Level Output Current: - 4 mA
• Low Level Output Current: 4 mA
• Maximum Clock Frequency: 25 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 15
• Subcategory: Logic ICs
• Unit Weight: 0.131759 oz
