CD74HC534EE4

CD74HC534EE4 Overview

This product is manufactured by Texas Instruments. This product has 8 circuit. The product uses the HC logic family. D-Type Flip-Flop. Polarity type: Inverting CMOS input type The output type is 3-State. The propagation delay time is 165 ns. This product has a - 7.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 7.8 mA Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 4.57 mm. 24.33 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 8 for efficient performance. 6 V operating supply voltage range Flip Flops product type 20 of 100 Logic ICs as subcategory 1. 0.042297 oz of Unit Weight

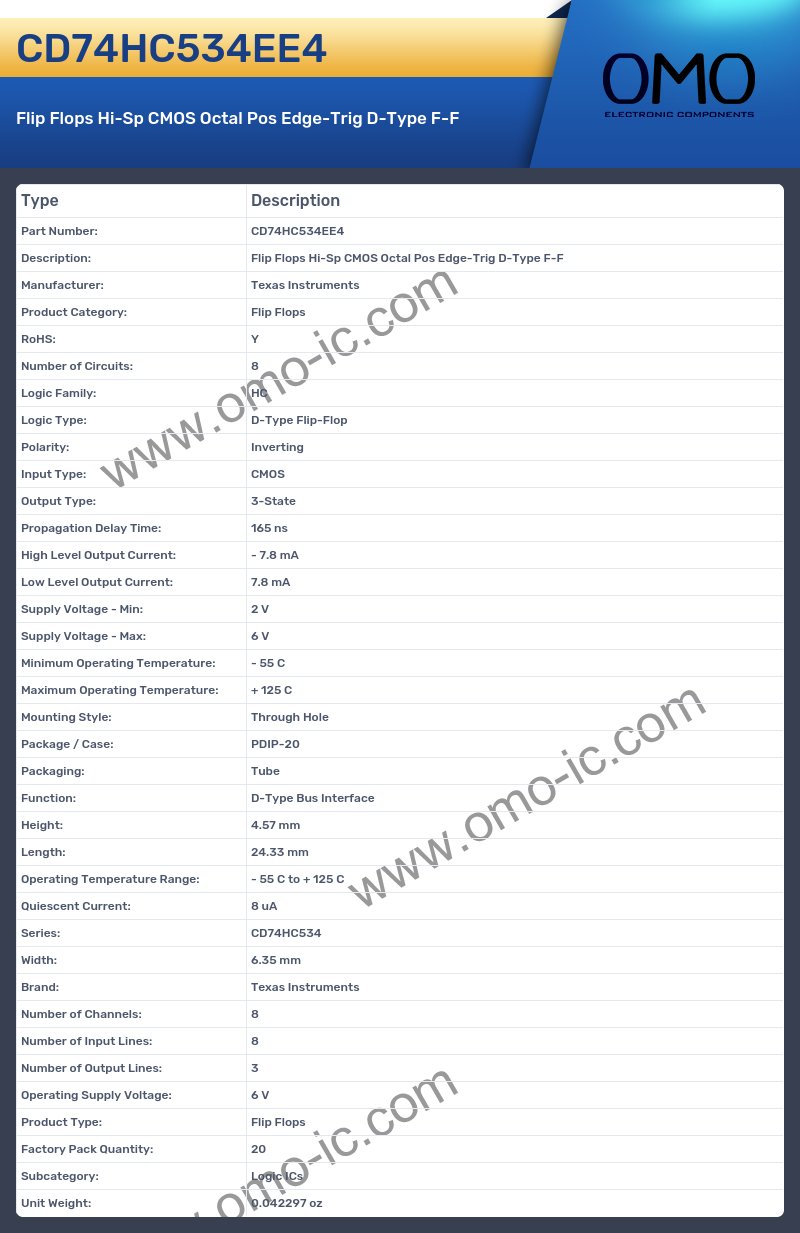

CD74HC534EE4 Image

CD74HC534EE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 8
• Logic Family: HC
• Logic Type: D-Type Flip-Flop
• Polarity: Inverting
• Input Type: CMOS
• Output Type: 3-State
• Propagation Delay Time: 165 ns
• High Level Output Current: - 7.8 mA
• Low Level Output Current: 7.8 mA
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Packaging: Tube
• Function: D-Type Bus Interface
• Height: 4.57 mm
• Length: 24.33 mm
• Operating Temperature Range: - 55 C to + 125 C
• Quiescent Current: 8 uA
• Series: CD74HC534
• Width: 6.35 mm
• Brand: Texas Instruments
• Number of Channels: 8
• Number of Input Lines: 8
• Number of Output Lines: 3
• Operating Supply Voltage: 6 V
• Product Type: Flip Flops
• Factory Pack Quantity: 20
• Subcategory: Logic ICs
• Unit Weight: 0.042297 oz
