CD74HC4511M

CD74HC4511M Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the HC logic family. The propagation delay time is 60 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a BCD to 7 Seg The height of the product is 1.58 mm. 0.5 V to 1.5 V Input Voltage 9.9 mm long This product has Dual circuit. Output current: +/- 25 mA Output Voltage is 2 V to 6 V Texas Instruments is a trusted brand for quality electronics Decoders/Drivers. Maximum supply current: 0.008 mA This product has a - 10 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA The Maximum Clock Frequency of this product is 28 MHz. 2 V to 6 V operating supply voltage range 114 mW Encoders, Decoders, Multiplexers & Demultiplexers product type 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

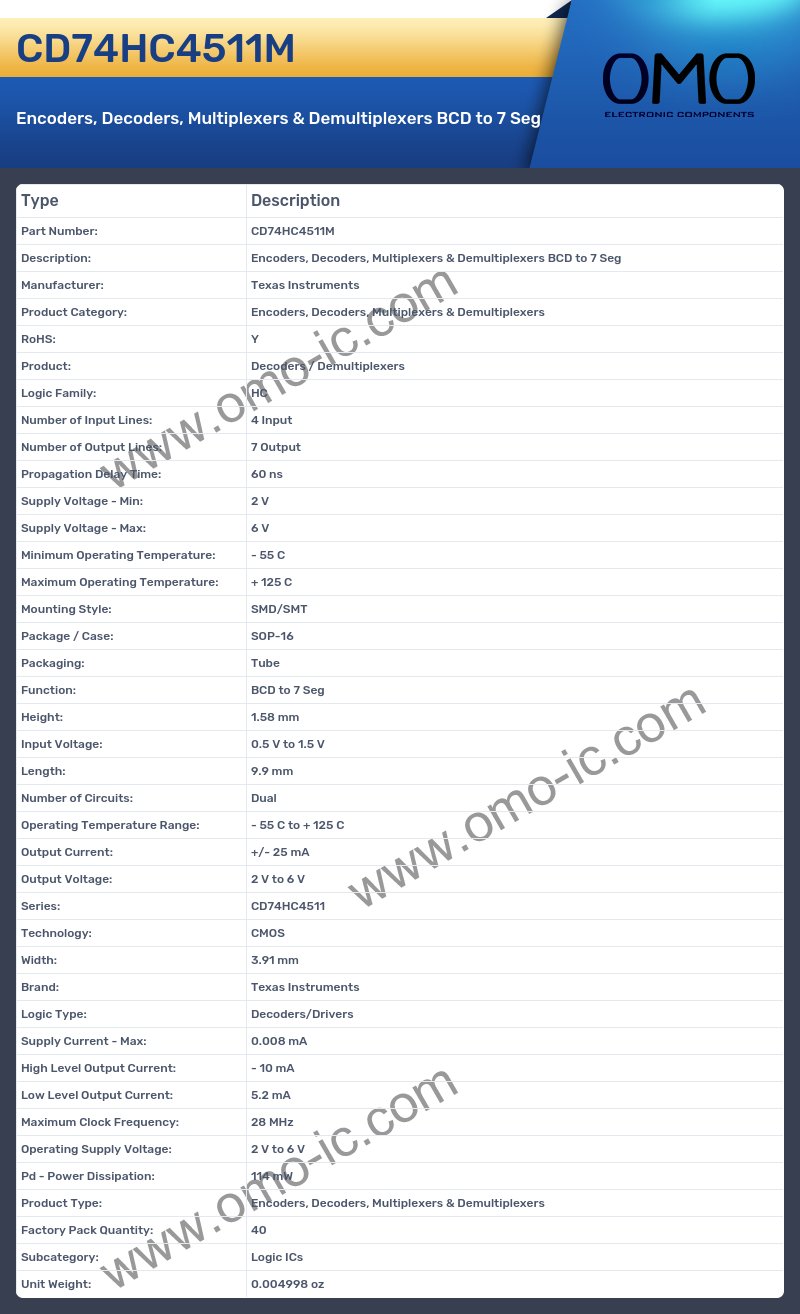

CD74HC4511M Image

CD74HC4511M Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: HC
• Number of Input Lines: 4 Input
• Number of Output Lines: 7 Output
• Propagation Delay Time: 60 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: BCD to 7 Seg
• Height: 1.58 mm
• Input Voltage: 0.5 V to 1.5 V
• Length: 9.9 mm
• Number of Circuits: Dual
• Operating Temperature Range: - 55 C to + 125 C
• Output Current: +/- 25 mA
• Output Voltage: 2 V to 6 V
• Series: CD74HC4511
• Technology: CMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Drivers
• Supply Current - Max: 0.008 mA
• High Level Output Current: - 10 mA
• Low Level Output Current: 5.2 mA
• Maximum Clock Frequency: 28 MHz
• Operating Supply Voltage: 2 V to 6 V
• Pd - Power Dissipation: 114 mW
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
