CD74HC109M96E4

CD74HC109M96E4 Overview

This product is manufactured by Texas Instruments. This product has 2 circuit. The product uses the HC logic family. J-K Type Flip-Flop. Polarity type: Inverting/Non-Inverting CMOS, LVTTL input type The output type is Differential. The propagation delay time is 175 ns. This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a J-K Type The height of the product is 1.58 mm. 9.9 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 2 V to 6 V operating supply voltage range Flip Flops product type Set, Reset Reset Type 2500 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

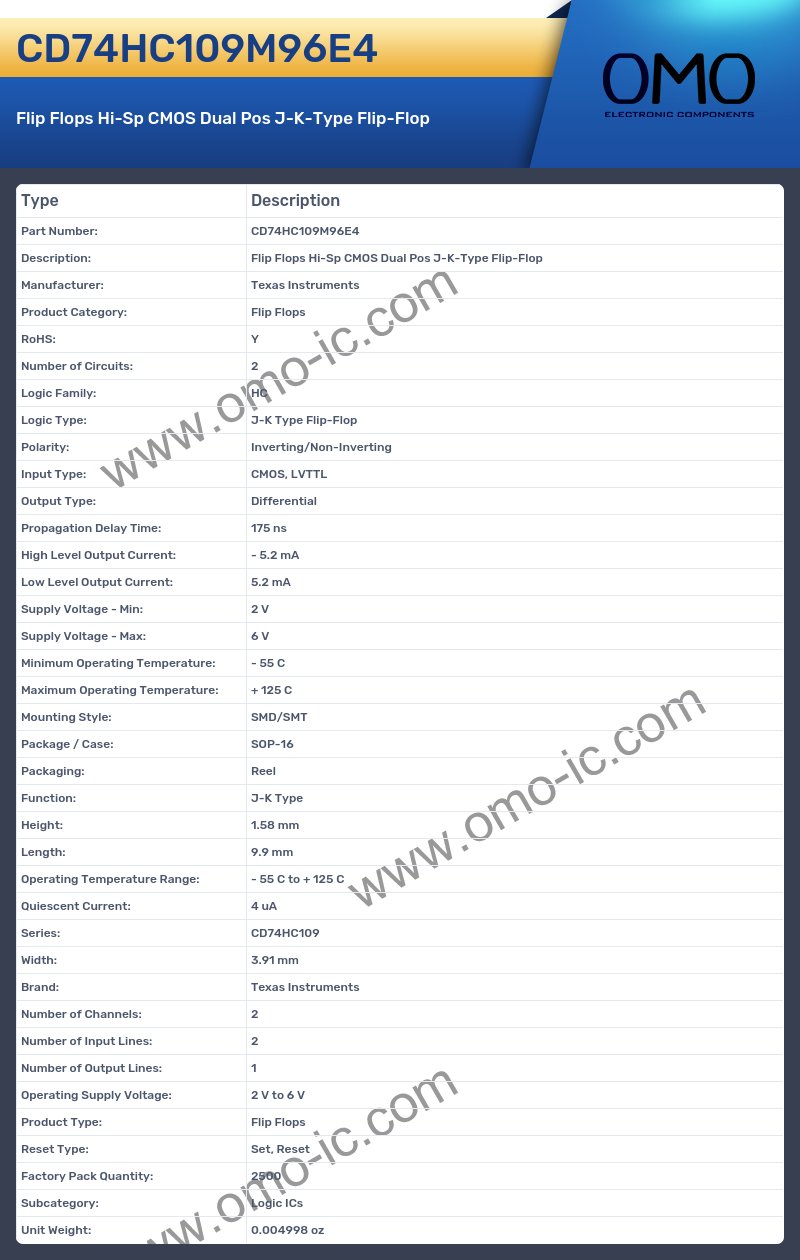

CD74HC109M96E4 Image

CD74HC109M96E4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 2
• Logic Family: HC
• Logic Type: J-K Type Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: CMOS, LVTTL
• Output Type: Differential
• Propagation Delay Time: 175 ns
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Reel
• Function: J-K Type
• Height: 1.58 mm
• Length: 9.9 mm
• Operating Temperature Range: - 55 C to + 125 C
• Quiescent Current: 4 uA
• Series: CD74HC109
• Width: 3.91 mm
• Brand: Texas Instruments
• Number of Channels: 2
• Number of Input Lines: 2
• Number of Output Lines: 1
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
