CD4504BPW

CD4504BPW Overview

This product is manufactured by Texas Instruments. This device belongs to the CMOS/TTL to CMOS type. The propagation delay time is 2.9 ns. Supply Voltage - Max: 18 V Supply Voltage - Min: 5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The 5 Mb/s data rate; CMOS, TTL input type Texas Instruments is a trusted brand for quality electronics The product uses the CD4000 logic family. Voltage Level Shifter. This product has a 2.4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 2.4 mA Translation - Voltage Levels product type 90 of 100 Logic ICs as subcategory 1. 0.002183 oz of Unit Weight

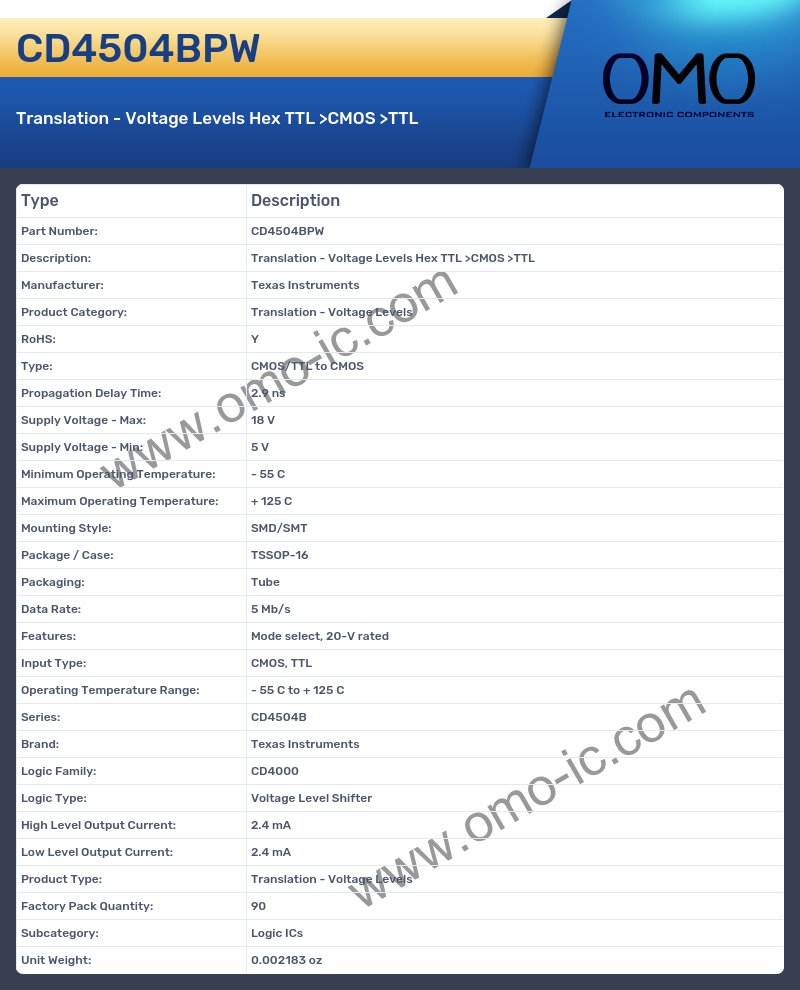

CD4504BPW Image

CD4504BPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Translation - Voltage Levels
• RoHS: Y
• Type: CMOS/TTL to CMOS
• Propagation Delay Time: 2.9 ns
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Tube
• Data Rate: 5 Mb/s
• Features: Mode select, 20-V rated
• Input Type: CMOS, TTL
• Operating Temperature Range: - 55 C to + 125 C
• Series: CD4504B
• Brand: Texas Instruments
• Logic Family: CD4000
• Logic Type: Voltage Level Shifter
• High Level Output Current: 2.4 mA
• Low Level Output Current: 2.4 mA
• Product Type: Translation - Voltage Levels
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002183 oz
