CD40109BPWR

CD40109BPWR Overview

This product is manufactured by Texas Instruments. The propagation delay time is 100 ns. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing The 10 Mb/s data rate; Texas Instruments is a trusted brand for quality electronics The product uses the CD40 logic family. Voltage Level Shifter. This product has a 6.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 6.8 mA 500 mW (1/2 W) Translation - Voltage Levels product type 2000 of 100 Logic ICs as subcategory 1. 0.002183 oz of Unit Weight

CD40109BPWR Image

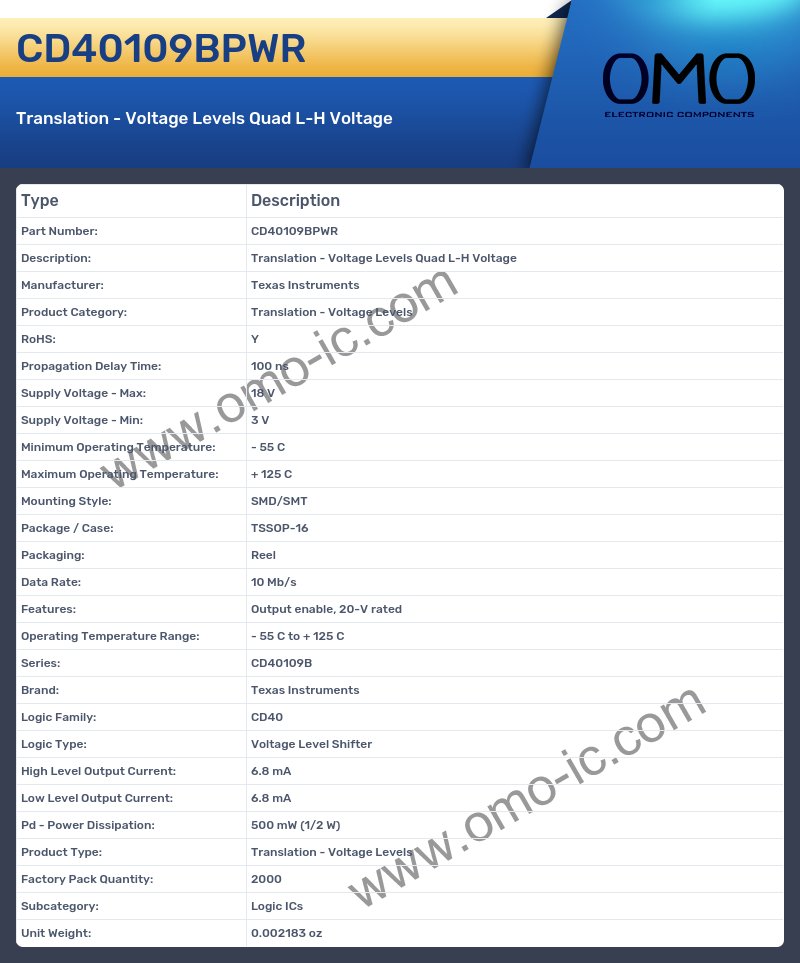

CD40109BPWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Translation - Voltage Levels
• RoHS: Y
• Propagation Delay Time: 100 ns
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Reel
• Data Rate: 10 Mb/s
• Features: Output enable, 20-V rated
• Operating Temperature Range: - 55 C to + 125 C
• Series: CD40109B
• Brand: Texas Instruments
• Logic Family: CD40
• Logic Type: Voltage Level Shifter
• High Level Output Current: 6.8 mA
• Low Level Output Current: 6.8 mA
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Translation - Voltage Levels
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.002183 oz
