ADUM131E1BRZ-RL7

ADUM131E1BRZ-RL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 3 Channel for efficient performance. Polarity type: Unidirectional 3 kVrms isolation voltage Magnetic Coupling isolation type The 150 Mb/s data rate; The propagation delay time is 7.2 ns. Supply Voltage - Max: 5 V Supply Voltage - Min: 1.8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Digital Isolators This device belongs to the General Purpose type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. EVAL-3CH4CHEBZ is a versatile development platform for hardware and software - mode allows for simultaneous transmission and reception of data. 2 Channel: 2 channels The product has a maximum fall time of 2.5 ns. 2.5 ns is the maximum rise time. 1.64 W Digital Isolators product type SPI protocol supported The 0.5 ns of this product is 500 ps. This product has no 1 Channel reverse channels. 1000 of 100 Interface ICs as subcategory

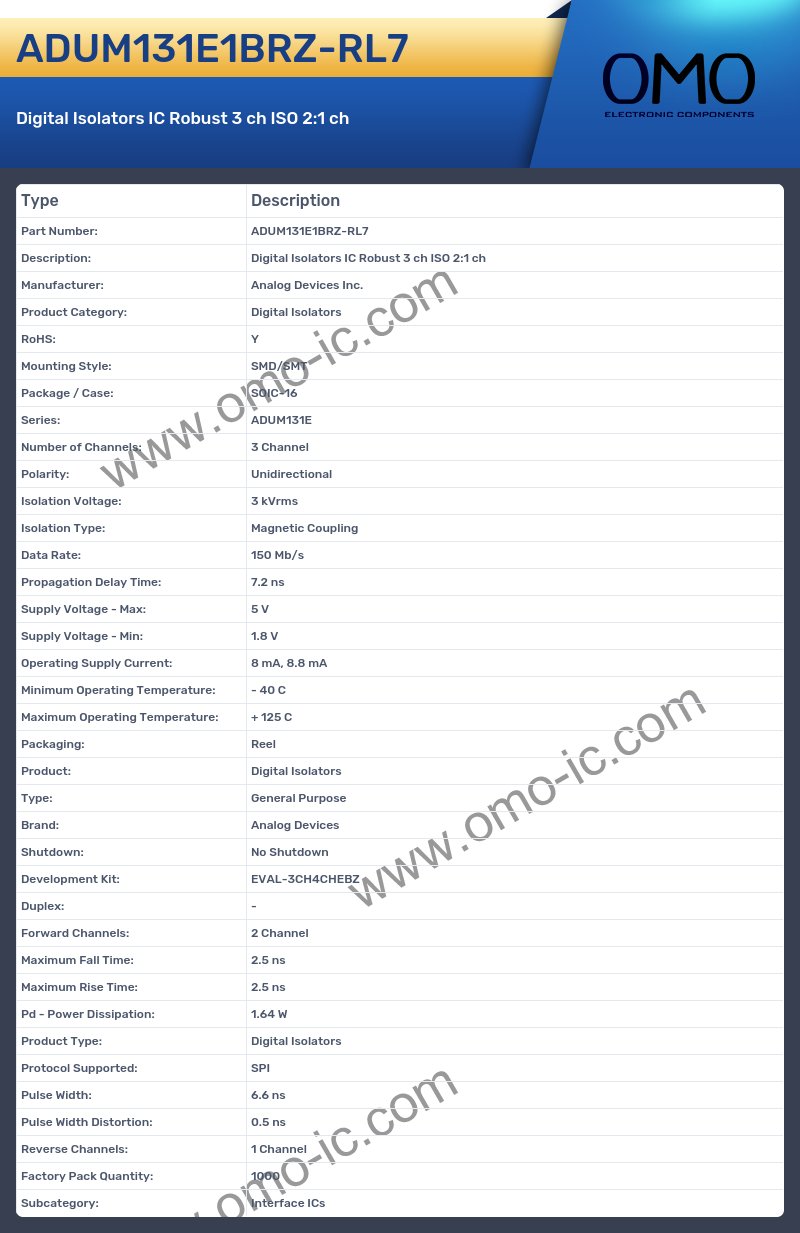

ADUM131E1BRZ-RL7 Image

ADUM131E1BRZ-RL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital Isolators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Series: ADUM131E
• Number of Channels: 3 Channel
• Polarity: Unidirectional
• Isolation Voltage: 3 kVrms
• Isolation Type: Magnetic Coupling
• Data Rate: 150 Mb/s
• Propagation Delay Time: 7.2 ns
• Supply Voltage - Max: 5 V
• Supply Voltage - Min: 1.8 V
• Operating Supply Current: 8 mA, 8.8 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Product: Digital Isolators
• Type: General Purpose
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: EVAL-3CH4CHEBZ
• Duplex: -
• Forward Channels: 2 Channel
• Maximum Fall Time: 2.5 ns
• Maximum Rise Time: 2.5 ns
• Pd - Power Dissipation: 1.64 W
• Product Type: Digital Isolators
• Protocol Supported: SPI
• Pulse Width: 6.6 ns
• Pulse Width Distortion: 0.5 ns
• Reverse Channels: 1 Channel
• Factory Pack Quantity: 1000
• Subcategory: Interface ICs
