ADS8509IDB

ADS8509IDB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 250 kS/s. Single-Ended input type Interface Type: SPI SAR architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.95 mm. 10.2 mm long Texas Instruments is a trusted brand for quality electronics ADS8509EVM is a versatile development platform for hardware and software The +/- 2 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 3 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 100 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.025045 oz of Unit Weight

ADS8509IDB Image

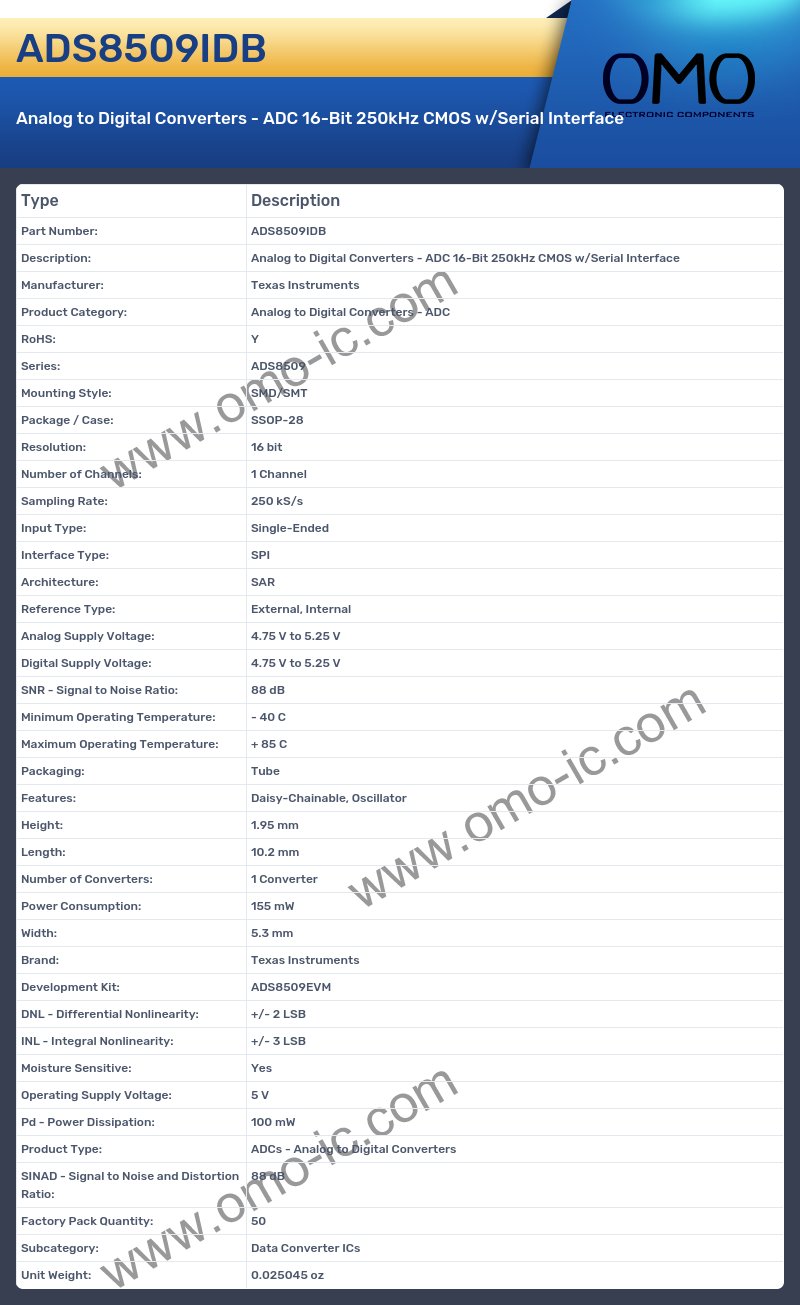

ADS8509IDB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS8509
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 250 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• SNR - Signal to Noise Ratio: 88 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Daisy-Chainable, Oscillator
• Height: 1.95 mm
• Length: 10.2 mm
• Number of Converters: 1 Converter
• Power Consumption: 155 mW
• Width: 5.3 mm
• Brand: Texas Instruments
• Development Kit: ADS8509EVM
• DNL - Differential Nonlinearity: +/- 2 LSB
• INL - Integral Nonlinearity: +/- 3 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 100 mW
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 88 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.025045 oz
