ADS7844E Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. QSOP-20 package/case type is utilized by this product. This product is equipped with 4 Channel/8 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Differential/Single-Ended input type Interface Type: SPI SAR architecture External is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.5 mm. 8.75 mm long Texas Instruments is a trusted brand for quality electronics The +/- 0.8 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 2 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 4.5 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.015873 oz of Unit Weight

ADS7844E Image

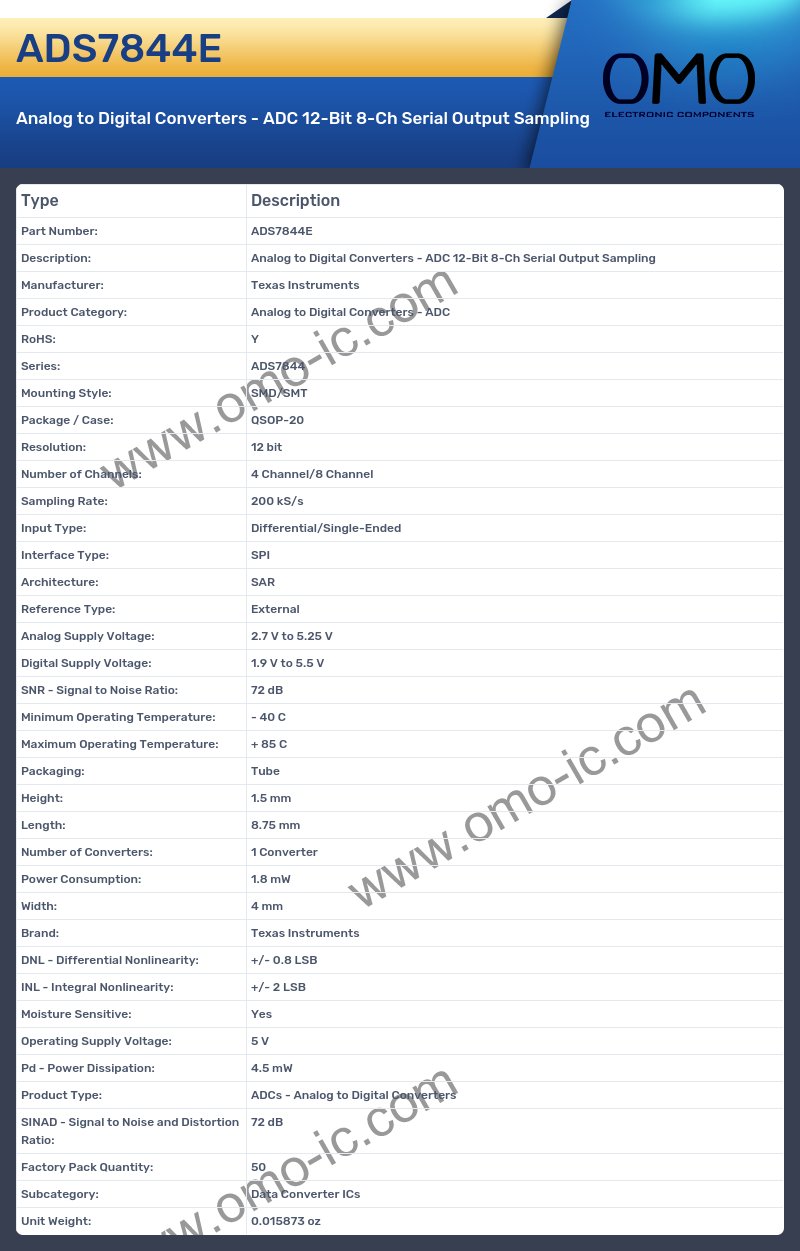

ADS7844E Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7844
• Mounting Style: SMD/SMT
• Package / Case: QSOP-20
• Resolution: 12 bit
• Number of Channels: 4 Channel/8 Channel
• Sampling Rate: 200 kS/s
• Input Type: Differential/Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 1.9 V to 5.5 V
• SNR - Signal to Noise Ratio: 72 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.5 mm
• Length: 8.75 mm
• Number of Converters: 1 Converter
• Power Consumption: 1.8 mW
• Width: 4 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 0.8 LSB
• INL - Integral Nonlinearity: +/- 2 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 4.5 mW
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 72 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.015873 oz
