ADS1294IPAG

ADS1294IPAG Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TQFP-64 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 32 kS/s. Differential input type Interface Type: SPI Sigma-Delta architecture External, Internal is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics INL is within 8 ppm Yes regarding Moisture Sensitivity 1.65 V to 3.6 V, 2.7 V to 5.25 V operating supply voltage range 6 mW ADCs - Analog to Digital Converters product type 160 of 100 Data Converter ICs as subcategory 1. 0.012720 oz of Unit Weight

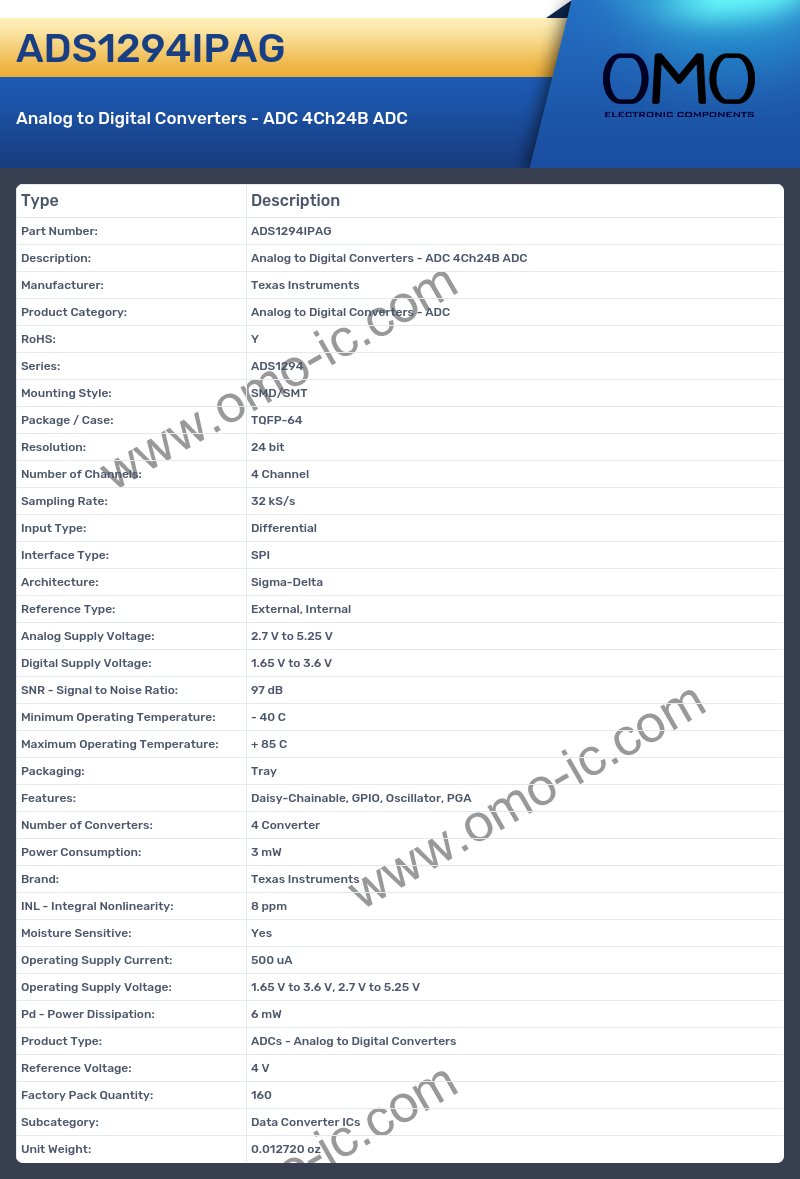

ADS1294IPAG Image

ADS1294IPAG Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS1294
• Mounting Style: SMD/SMT
• Package / Case: TQFP-64
• Resolution: 24 bit
• Number of Channels: 4 Channel
• Sampling Rate: 32 kS/s
• Input Type: Differential
• Interface Type: SPI
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 1.65 V to 3.6 V
• SNR - Signal to Noise Ratio: 97 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Features: Daisy-Chainable, GPIO, Oscillator, PGA
• Number of Converters: 4 Converter
• Power Consumption: 3 mW
• Brand: Texas Instruments
• INL - Integral Nonlinearity: 8 ppm
• Moisture Sensitive: Yes
• Operating Supply Current: 500 uA
• Operating Supply Voltage: 1.65 V to 3.6 V, 2.7 V to 5.25 V
• Pd - Power Dissipation: 6 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 4 V
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Unit Weight: 0.012720 oz
