ADS1211U/1K

ADS1211U/1K Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 16 kS/s. Differential input type Interface Type: 3-Wire, I2C, SPI Sigma-Delta architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 2.35 mm. 15.4 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.0015 % FSR Yes regarding Moisture Sensitivity 4.75 V to 5.25 V operating supply voltage range 60 mW ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.022025 oz of Unit Weight

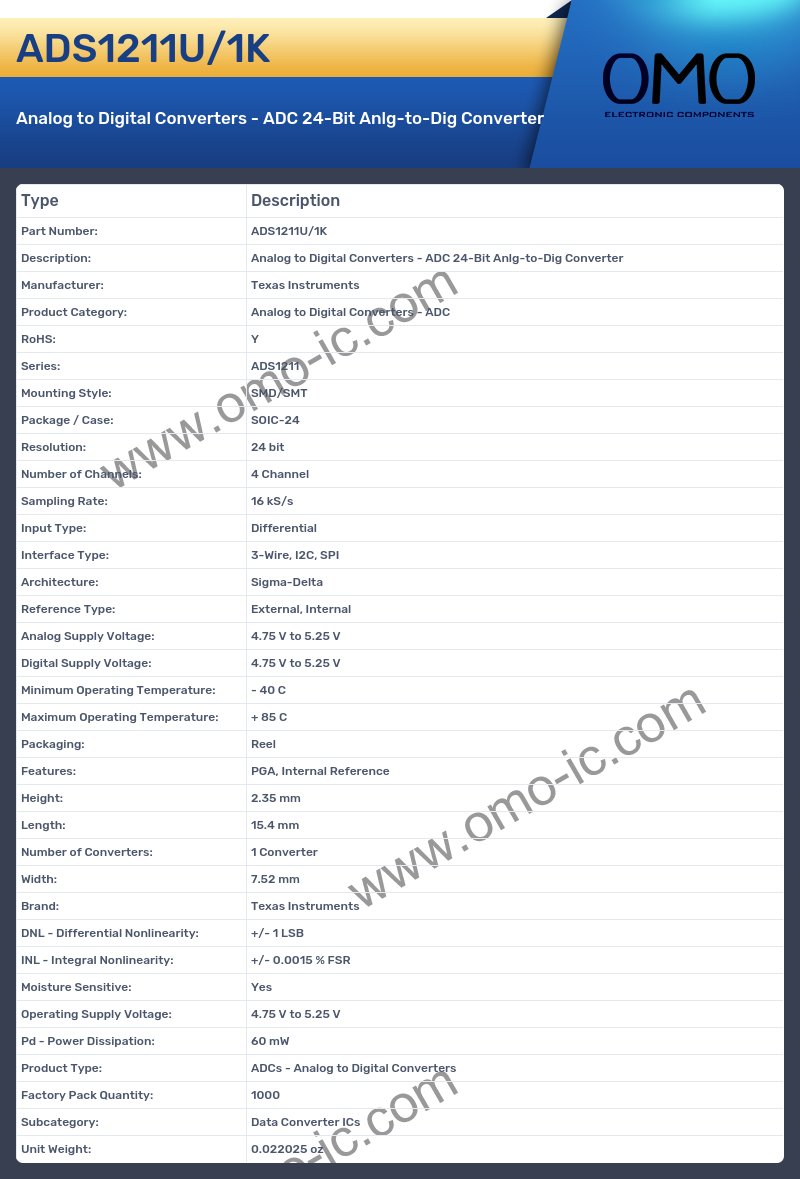

ADS1211U/1K Image

ADS1211U/1K Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS1211
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Resolution: 24 bit
• Number of Channels: 4 Channel
• Sampling Rate: 16 kS/s
• Input Type: Differential
• Interface Type: 3-Wire, I2C, SPI
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Features: PGA, Internal Reference
• Height: 2.35 mm
• Length: 15.4 mm
• Number of Converters: 1 Converter
• Width: 7.52 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 0.0015 % FSR
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.75 V to 5.25 V
• Pd - Power Dissipation: 60 mW
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.022025 oz
