ADGS1409BCPZ

ADGS1409BCPZ Overview

This product is manufactured by Analog Devices Inc.. Multiplexers This product is equipped with 2 Channel for efficient performance. This product has a 2 x 4:1 configuration. Our product has a maximum 325 ns. Our product has a maximum 240 ns. 12 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-24 package/case type is utilized by this product. Tray packaging for easy dispensing This product has a 72 MHz of 2.7 GHz to 3.5 GHz. Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Our product has an - 64 dB. Maximum supply current: 229.6 mA EVAL-ADGS1409SDZ is a versatile development platform for hardware and software 1. The maximum dual supply voltage is +/- 16.5 V. +/- 4.5 V minimum dual supply voltage Multiplexer Switch ICs product type 490 of 100 Switch ICs as subcategory Supply Voltage - Max: 20 V Supply Voltage - Min: 5 V Maximum switch voltage is 12 V

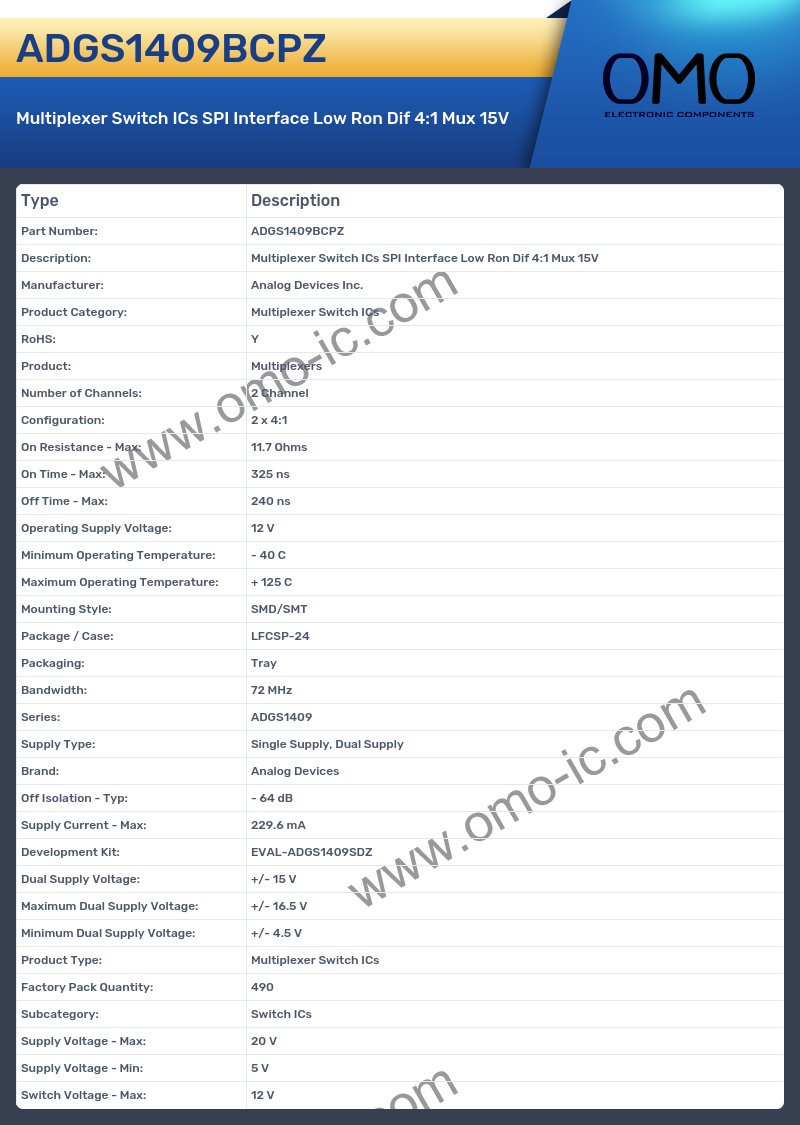

ADGS1409BCPZ Image

ADGS1409BCPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Multiplexer Switch ICs
• RoHS: Y
• Product: Multiplexers
• Number of Channels: 2 Channel
• Configuration: 2 x 4:1
• On Resistance - Max: 11.7 Ohms
• On Time - Max: 325 ns
• Off Time - Max: 240 ns
• Operating Supply Voltage: 12 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-24
• Packaging: Tray
• Bandwidth: 72 MHz
• Series: ADGS1409
• Supply Type: Single Supply, Dual Supply
• Brand: Analog Devices
• Off Isolation - Typ: - 64 dB
• Supply Current - Max: 229.6 mA
• Development Kit: EVAL-ADGS1409SDZ
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Product Type: Multiplexer Switch ICs
• Factory Pack Quantity: 490
• Subcategory: Switch ICs
• Supply Voltage - Max: 20 V
• Supply Voltage - Min: 5 V
• Switch Voltage - Max: 12 V
