ADG5413BRUZ-REEL7

ADG5413BRUZ-REEL7 Overview

This product is manufactured by Analog Devices Inc.. Our product has a 4 Switch number of switches. This product has a 4 x SPST configuration. Maximum switch voltage is 15 V Our product has a maximum 202 ns. Our product has a maximum 145 ns. 9 V to 40 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 1.05 mm (Max). 5 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 55 uA 1. The maximum dual supply voltage is +/- 22 V. +/- 9 V minimum dual supply voltage 1 mW Analog Switch ICs product type 1000 of 100 Switch ICs as subcategory Supply Voltage - Max: 40 V Supply Voltage - Min: 9 V Maximum continuous current: 89 mA 1. 0.006102 oz of Unit Weight

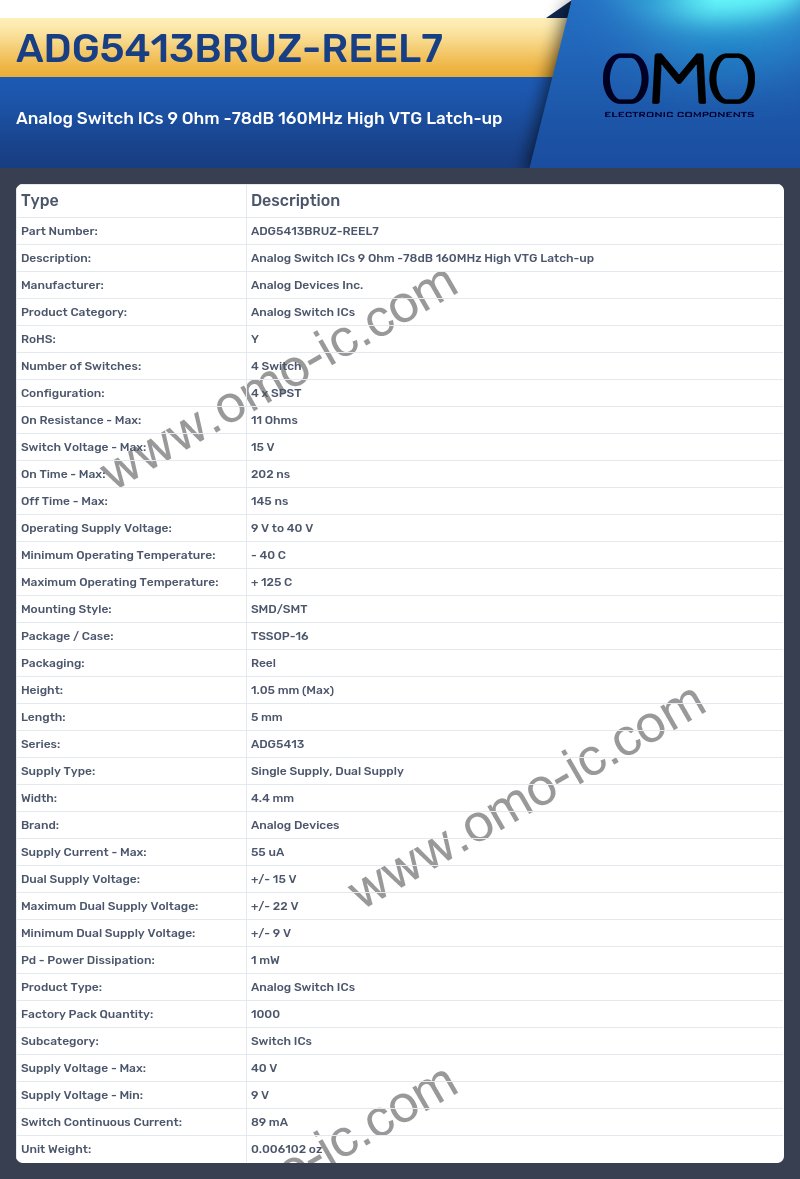

ADG5413BRUZ-REEL7 Image

ADG5413BRUZ-REEL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 4 Switch
• Configuration: 4 x SPST
• On Resistance - Max: 11 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 202 ns
• Off Time - Max: 145 ns
• Operating Supply Voltage: 9 V to 40 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Reel
• Height: 1.05 mm (Max)
• Length: 5 mm
• Series: ADG5413
• Supply Type: Single Supply, Dual Supply
• Width: 4.4 mm
• Brand: Analog Devices
• Supply Current - Max: 55 uA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 22 V
• Minimum Dual Supply Voltage: +/- 9 V
• Pd - Power Dissipation: 1 mW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 1000
• Subcategory: Switch ICs
• Supply Voltage - Max: 40 V
• Supply Voltage - Min: 9 V
• Switch Continuous Current: 89 mA
• Unit Weight: 0.006102 oz
