ADC12DS105CISQ/NOPB

ADC12DS105CISQ/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WQFN-60 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 105 MS/s. Differential input type Interface Type: Serial Pipeline architecture External, Internal is the reference type. This product requires an 2.7 V to 3.6 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.8 mm. 2 V Input Voltage 9 mm long The output type is LVDS. This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The +/- 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. 1 % FSR is 0.2%. INL is within 2 LSB Yes regarding Moisture Sensitivity 3.3 V operating supply voltage range 1.06 W ADCs - Analog to Digital Converters product type 2000 of 100 Data Converter ICs as subcategory

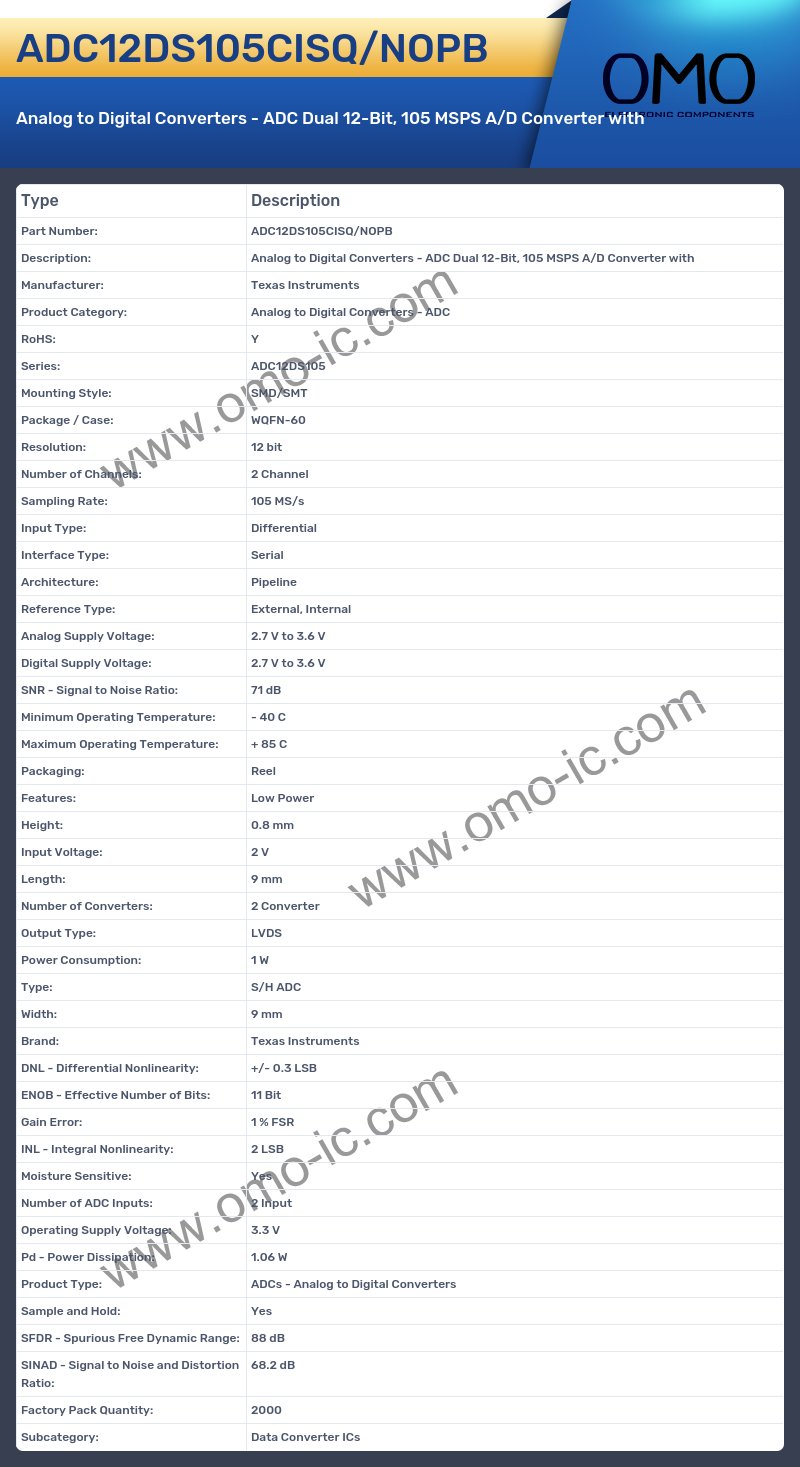

ADC12DS105CISQ/NOPB Image

ADC12DS105CISQ/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADC12DS105
• Mounting Style: SMD/SMT
• Package / Case: WQFN-60
• Resolution: 12 bit
• Number of Channels: 2 Channel
• Sampling Rate: 105 MS/s
• Input Type: Differential
• Interface Type: Serial
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 2.7 V to 3.6 V
• Digital Supply Voltage: 2.7 V to 3.6 V
• SNR - Signal to Noise Ratio: 71 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Features: Low Power
• Height: 0.8 mm
• Input Voltage: 2 V
• Length: 9 mm
• Number of Converters: 2 Converter
• Output Type: LVDS
• Power Consumption: 1 W
• Type: S/H ADC
• Width: 9 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 0.3 LSB
• ENOB - Effective Number of Bits: 11 Bit
• Gain Error: 1 % FSR
• INL - Integral Nonlinearity: 2 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 1.06 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SFDR - Spurious Free Dynamic Range: 88 dB
• SINAD - Signal to Noise and Distortion Ratio: 68.2 dB
• Factory Pack Quantity: 2000
• Subcategory: Data Converter ICs
