ADC121S705CIMM

ADC121S705CIMM Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. MSOP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Differential input type Interface Type: 3-Wire, SPI SAR architecture External is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Reel packaging for easy dispensing The height of the product is 0.86 mm. +/- 2.5 V Input Voltage 3 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The 0.95 LSB, ensuring accurate and precise analog-to-digital conversion. 6.5 LSB is 0.2%. INL is within 0.95 LSB 5 V operating supply voltage range ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.004938 oz of Unit Weight

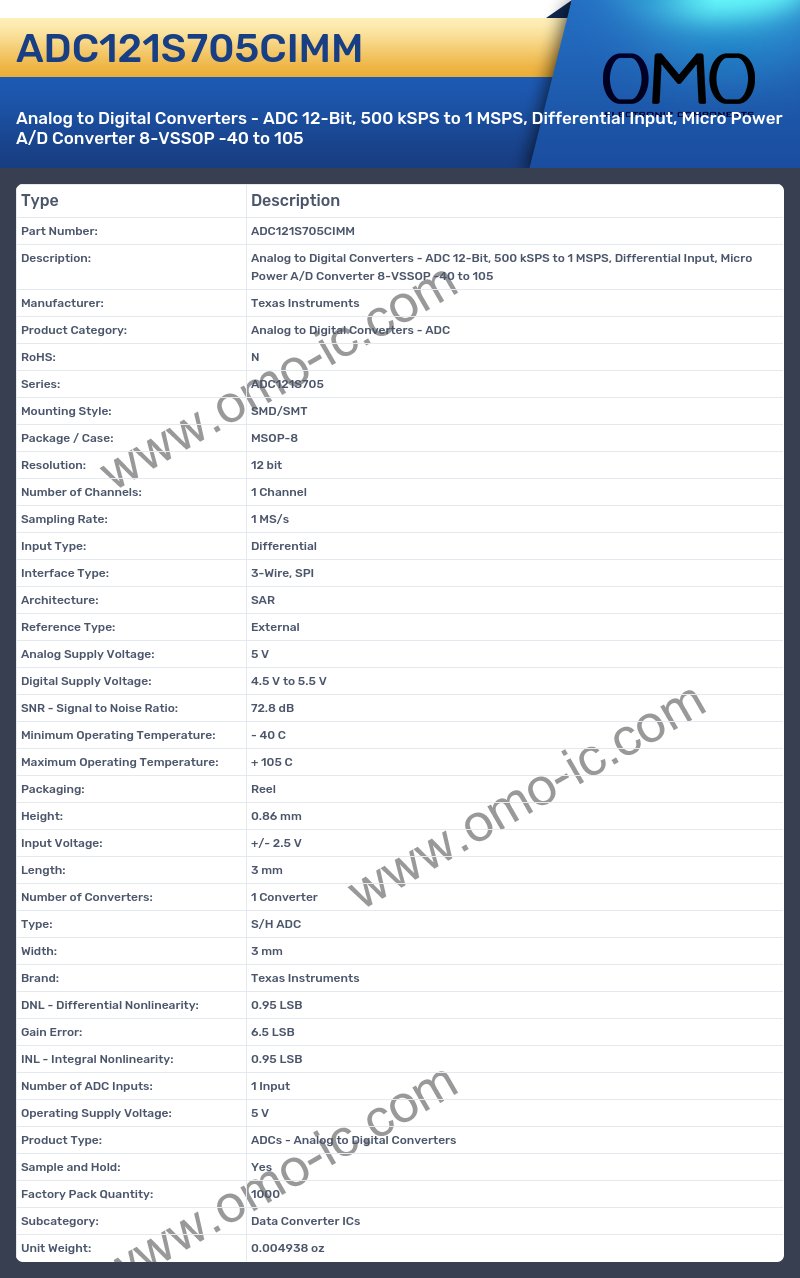

ADC121S705CIMM Image

ADC121S705CIMM Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: ADC121S705
• Mounting Style: SMD/SMT
• Package / Case: MSOP-8
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 4.5 V to 5.5 V
• SNR - Signal to Noise Ratio: 72.8 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Reel
• Height: 0.86 mm
• Input Voltage: +/- 2.5 V
• Length: 3 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 3 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: 0.95 LSB
• Gain Error: 6.5 LSB
• INL - Integral Nonlinearity: 0.95 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.004938 oz
