ADC11C125CISQ

ADC11C125CISQ Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WQFN-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 125 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.8 mm. +/- 1 V Input Voltage 7 mm long The output type is CMOS. This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The - 0.55 LSB to + 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. - 3.7 % FSR to + 4 % FSR is 0.2%. INL is within 0.83 LSB 3.3 V operating supply voltage range 5.2 W ADCs - Analog to Digital Converters product type 250 of 100 Data Converter ICs as subcategory

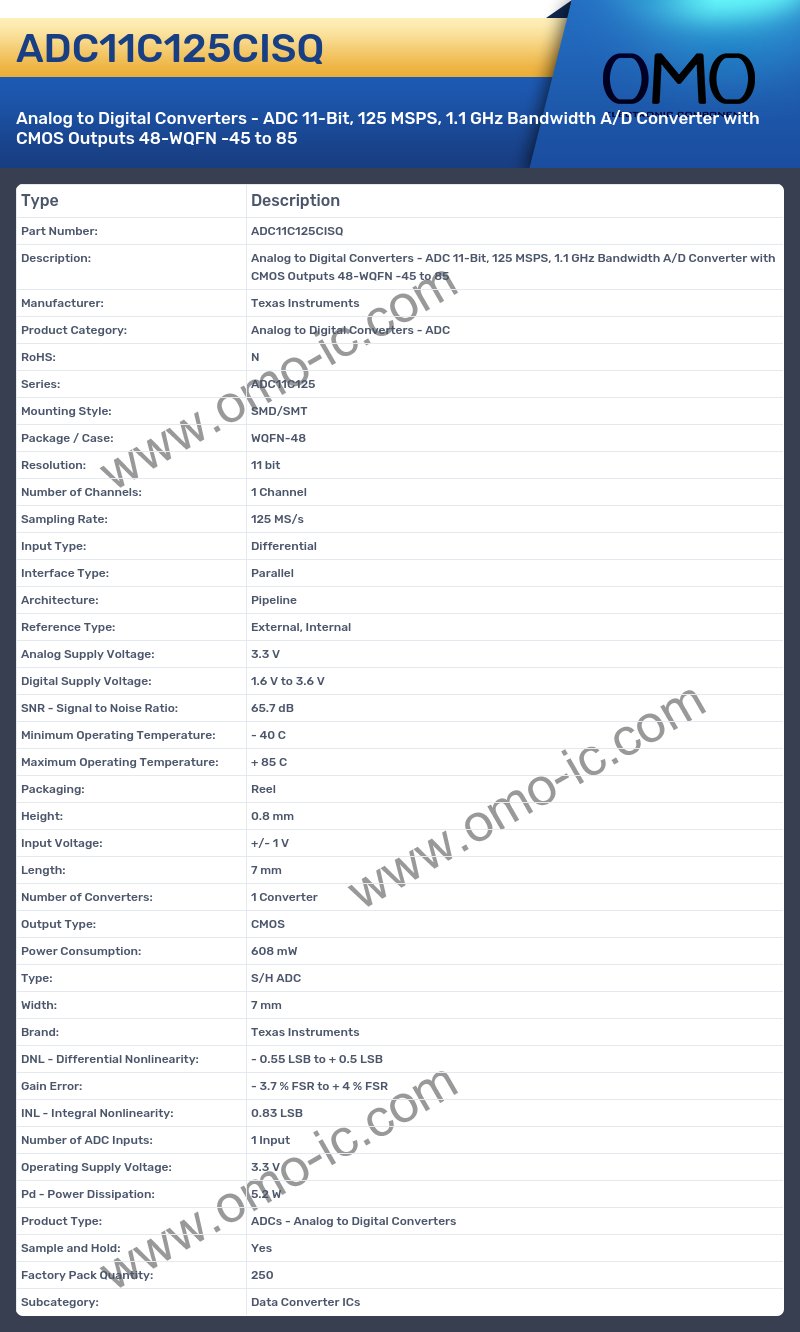

ADC11C125CISQ Image

ADC11C125CISQ Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: ADC11C125
• Mounting Style: SMD/SMT
• Package / Case: WQFN-48
• Resolution: 11 bit
• Number of Channels: 1 Channel
• Sampling Rate: 125 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 1.6 V to 3.6 V
• SNR - Signal to Noise Ratio: 65.7 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.8 mm
• Input Voltage: +/- 1 V
• Length: 7 mm
• Number of Converters: 1 Converter
• Output Type: CMOS
• Power Consumption: 608 mW
• Type: S/H ADC
• Width: 7 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: - 0.55 LSB to + 0.5 LSB
• Gain Error: - 3.7 % FSR to + 4 % FSR
• INL - Integral Nonlinearity: 0.83 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 5.2 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
