AD9765AST

AD9765AST Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 125 MS/s. This product is equipped with 2 Channel for efficient performance. 35 ns settling time Interface Type: Parallel External, Internal is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. LQFP-48 package/case type is utilized by this product. Tray packaging for easy dispensing The height of the product is 1.4 mm. 9 mm long The output type is Current. This device belongs to the General Purpose type. Segment architecture Analog Devices is a trusted brand for quality electronics AD9765-EBZ is a versatile development platform for hardware and software The +/- 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.4 LSB Yes regarding Moisture Sensitivity 3 V to 5.5 V operating supply voltage range 450 mW DACs - Digital to Analog Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.006409 oz of Unit Weight

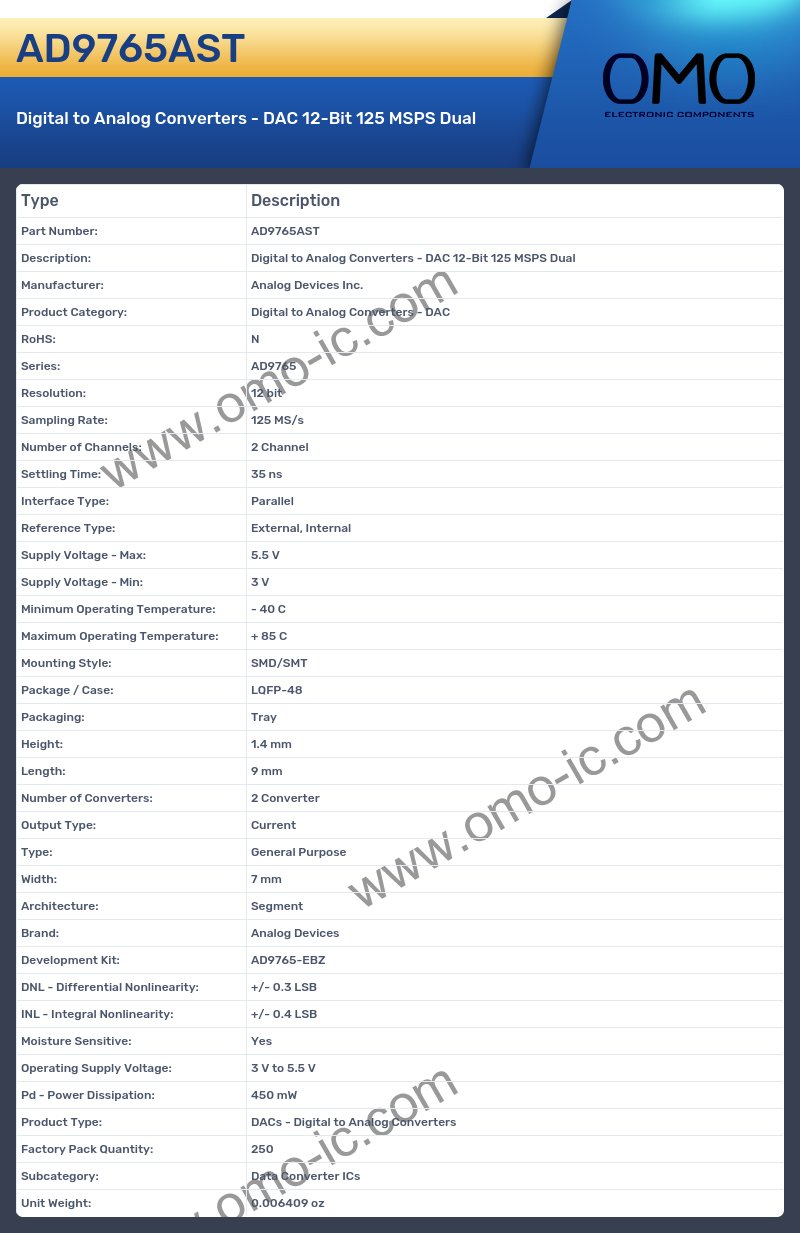

AD9765AST Image

AD9765AST Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD9765
• Resolution: 12 bit
• Sampling Rate: 125 MS/s
• Number of Channels: 2 Channel
• Settling Time: 35 ns
• Interface Type: Parallel
• Reference Type: External, Internal
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: LQFP-48
• Packaging: Tray
• Height: 1.4 mm
• Length: 9 mm
• Number of Converters: 2 Converter
• Output Type: Current
• Type: General Purpose
• Width: 7 mm
• Architecture: Segment
• Brand: Analog Devices
• Development Kit: AD9765-EBZ
• DNL - Differential Nonlinearity: +/- 0.3 LSB
• INL - Integral Nonlinearity: +/- 0.4 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V to 5.5 V
• Pd - Power Dissipation: 450 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.006409 oz
